Scantool Diagnostics

BCM

Power Trunk Module - B2459 Latch Motor and Switch Error - Scantool Diagnostics

Scantool Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".

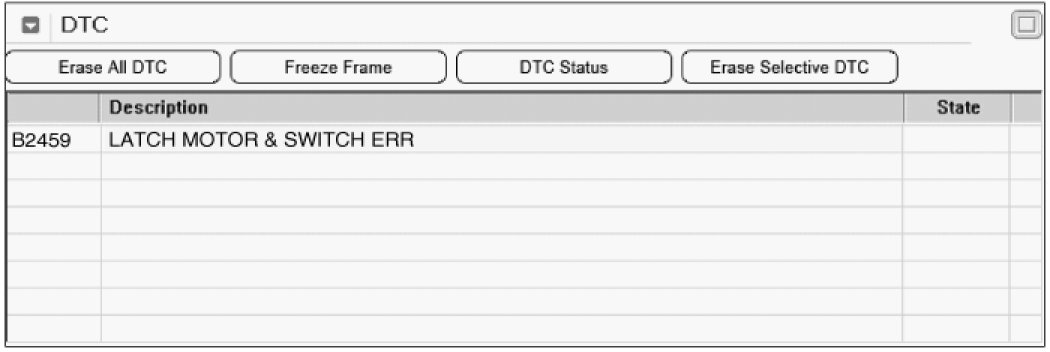

3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

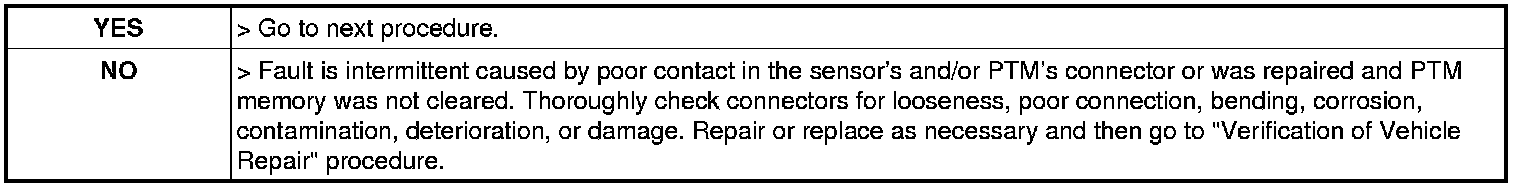

5. Is the same DTC occurred again?
