Scantool Diagnostics

BCM

Power Seat Module - B1955 Recline Motor Or Sensor Error - Scantool Diagnostics

Scantool Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".

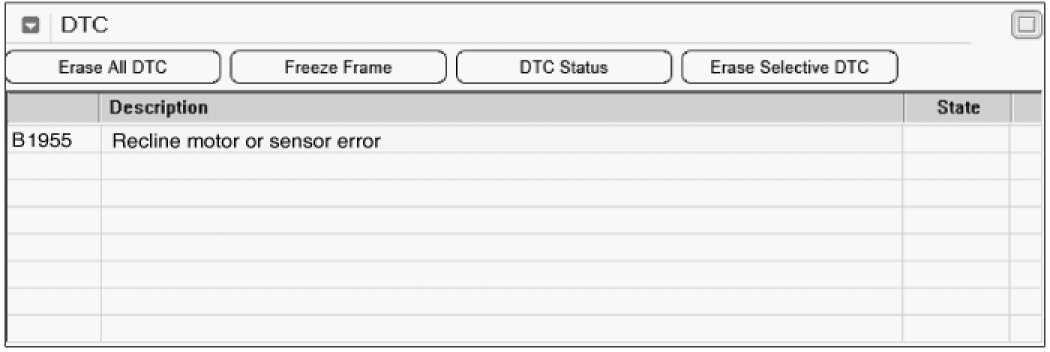

3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

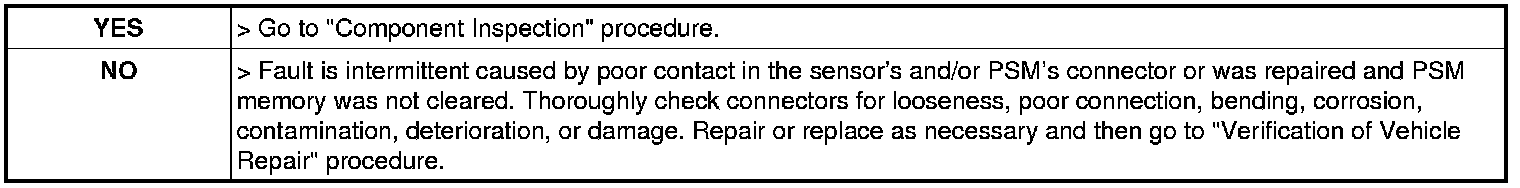

5. Is the same DTC occurred again?
