Scantool Diagnostics

BCM

Driver Door Module - B1682 DDM and Rear RH Serial Communication Error - Scantool Diagnostics

Scantool Data Analysis

1. Connect GDS.
2. IG "ON" and engine "OFF".

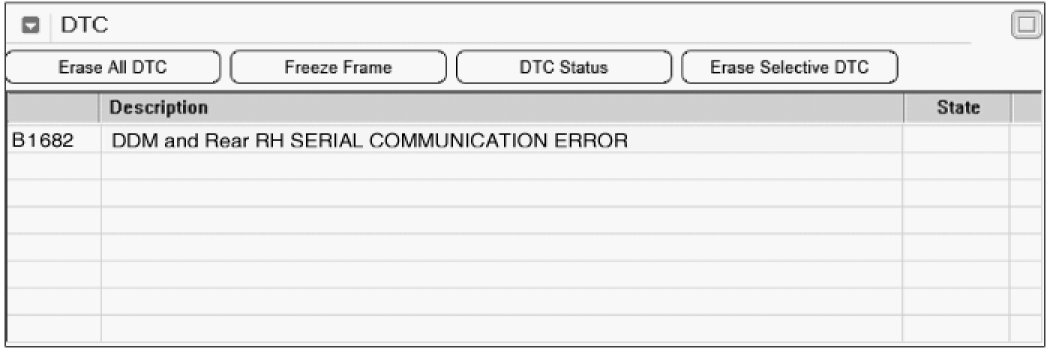

3. Select "DTC Analysis" mode.
4. After erase DTC, keep the vehicle condition within "the enable conditions" .

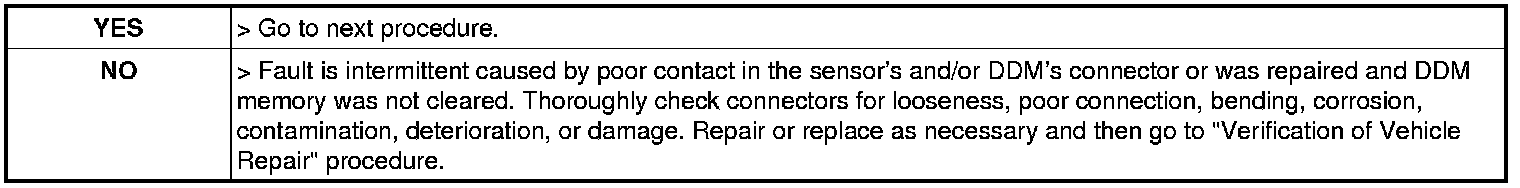

5. Is the same DTC occurred again?
