Adaptive Front Lighting System - B1306 Brake pedal signal fault - Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. ENG "ON"
3. Monitor the "Brake pedal signal" parameters on the scantool. (ECM's current data)

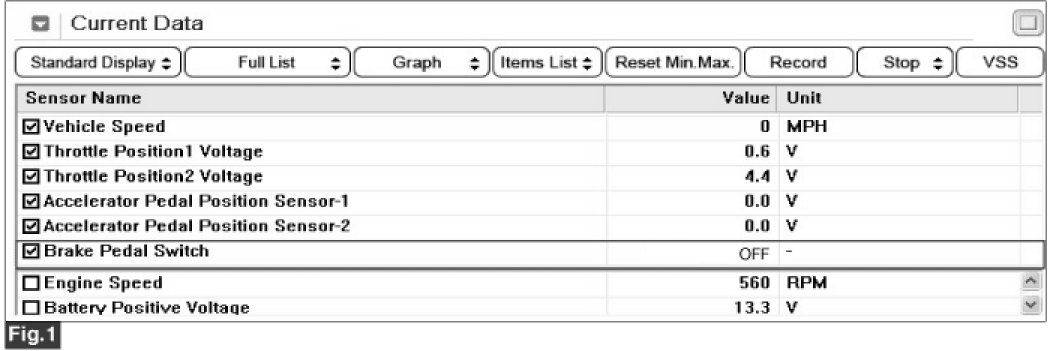

Fig 1) ENG "ON"(ECM's current data)

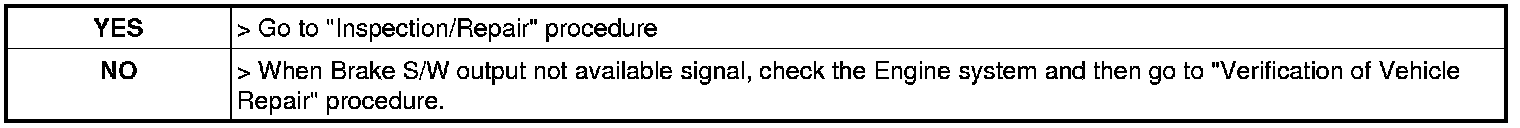

4. Is parameter displayed within specifications?
