Home
>>
Hyundai
>>
2010
>>
Genesis Sedan V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
Air Bag Systems

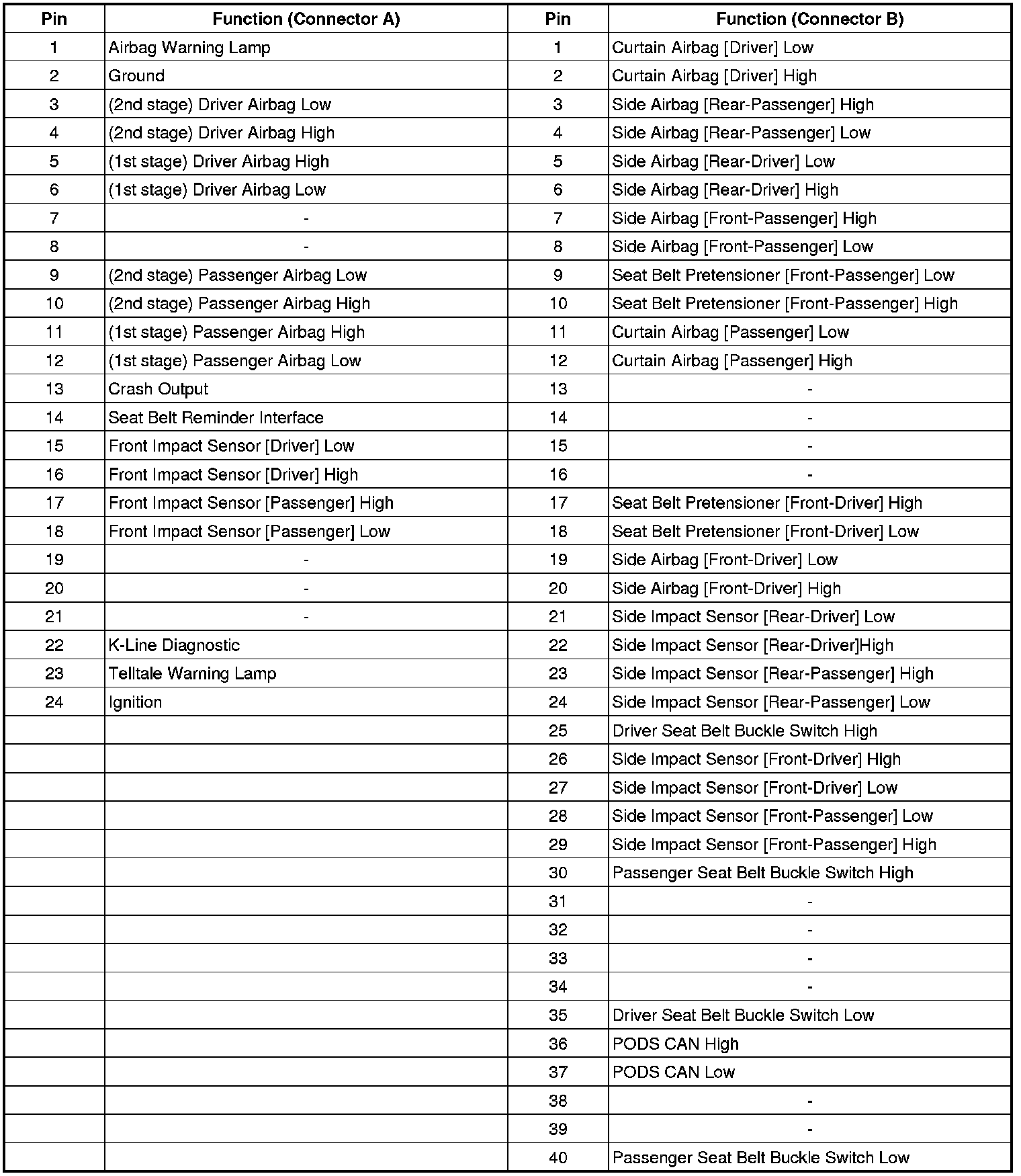

SRSCM Connector Terminal

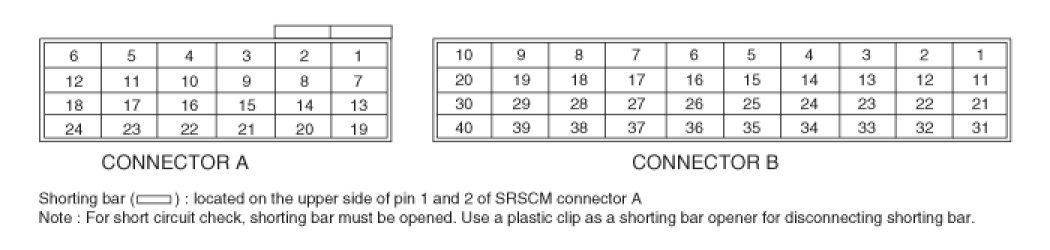

Harness Connector
