Electric Parking Brake Switch: Testing and Inspection





Inspection

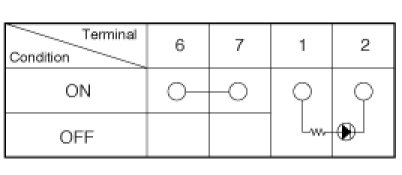

EPB Switch
1. Measure resistance between EPB switch terminals as below.

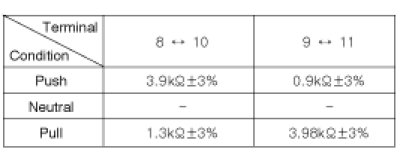

Auto Hold Switch
1. Measure resistance between Auto Hold switch terminals as below.
