Even After The Engine Is Started, The ABS Warning Lamp Remains on

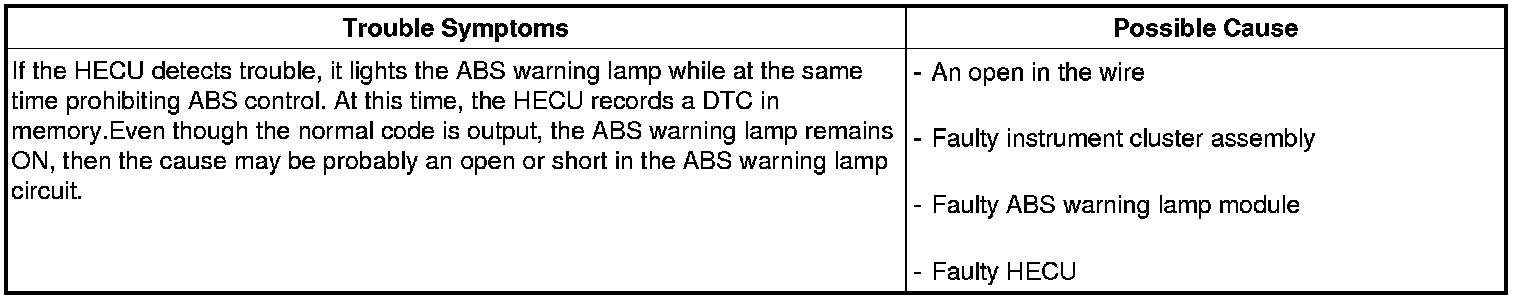

Detecting Condition






Inspection Procedures
Check DTC Output
1. Connect the scan tool to the 16P data link connector located behind the driver's side kick panel.
2. Check the DTC output using scan tool.
3. Is DTC output?






Check the Can Circuit Resistance for ABS Warning Lamp
1. Disconnect the instrument cluster connector (M11-B) and turn the ignition switch OFF.
2. Measure the resistance between terminal (M11-B) 17 and 18 of the cluster harness side connector.

Specification :60Ohms





3. Is resistance within specification?






Check the Can Circuit Wiring for ABS Warning Lamp
1. Disconnect the instrument cluster connector (M11-B) and ESC HECU connector, and then turn the ignition switch OFF.
2. Check for continuity between terminal (M11-B) 18 of the cluster harness side connector and terminal 12 of ESC HECU harness side.
Check for continuity between terminal (M11-B) 17 of the cluster harness side connector and terminal 13 of ESC HECU harness side.

Specification :Below 1Ohms

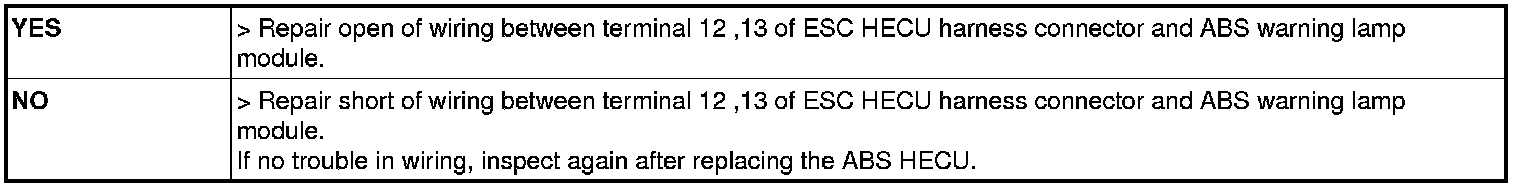

3. Is resistance within specification?
