Rear Shelf: Service and Repair

Replacement

Package Tray Trim Replacement
1. Remove the rear seat assembly.

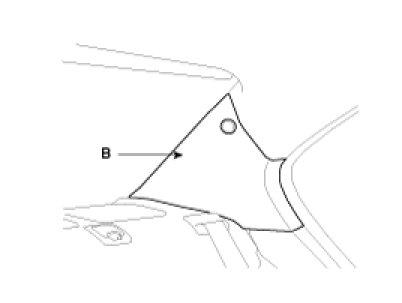

2. Remove the rear pillar trim (B).

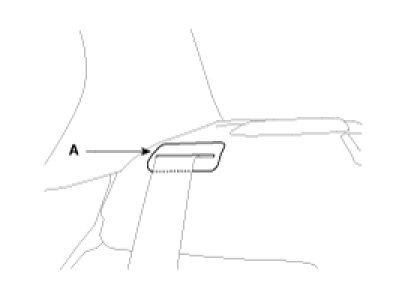

3. Disconnect the cover (A).

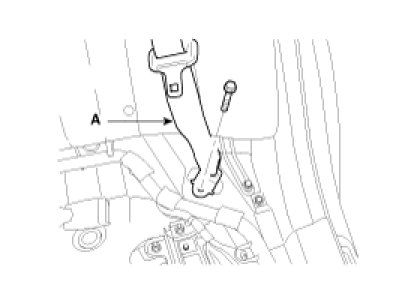

4. Remove the rear seat belt lower anchor (A).

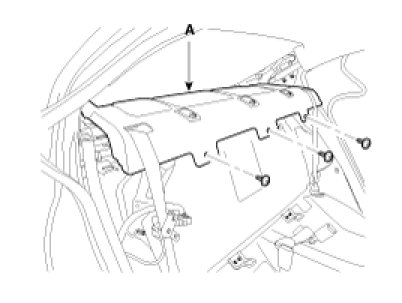

5. After loosening the mounting screws, remove the package tray trim (A).




6. Installation is the reverse of removal.
