Audio Head Unit Replacement

Audio Head Unit Replacement
1. Remove the crash pad lower facia panel.

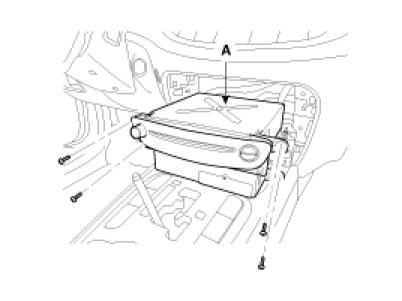

2. After loosening the mounting screws, remove the audio head unit (A).




3. Disconnect the connectors (A).




4. Installation is the reverse of removal.
