Genesis Coupe V6-3.8L
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Manual Transmission/Transaxle
>>
System Diagram
>>
Manual Transmission
Manual Transmission

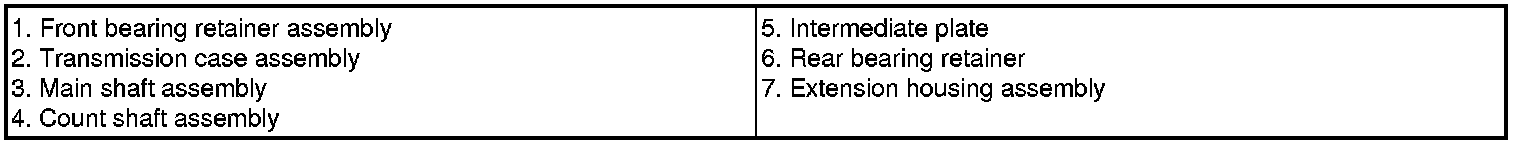

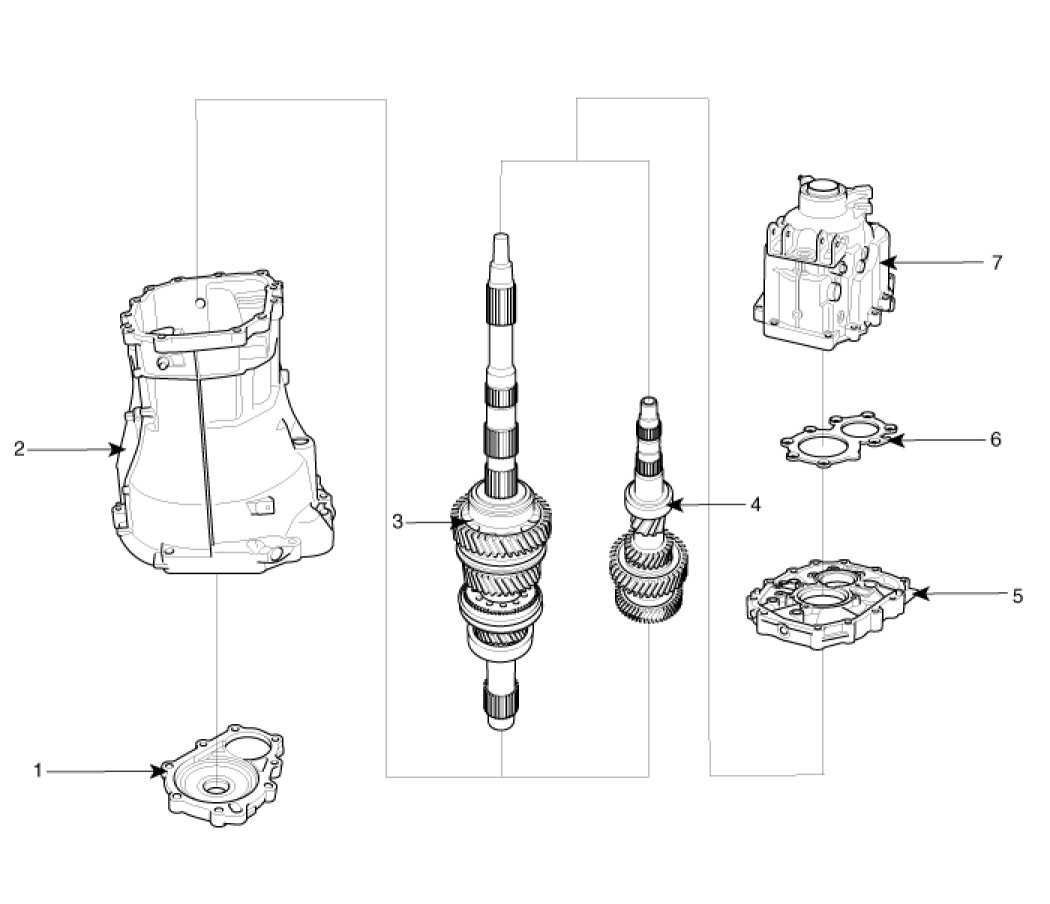

Components (1)

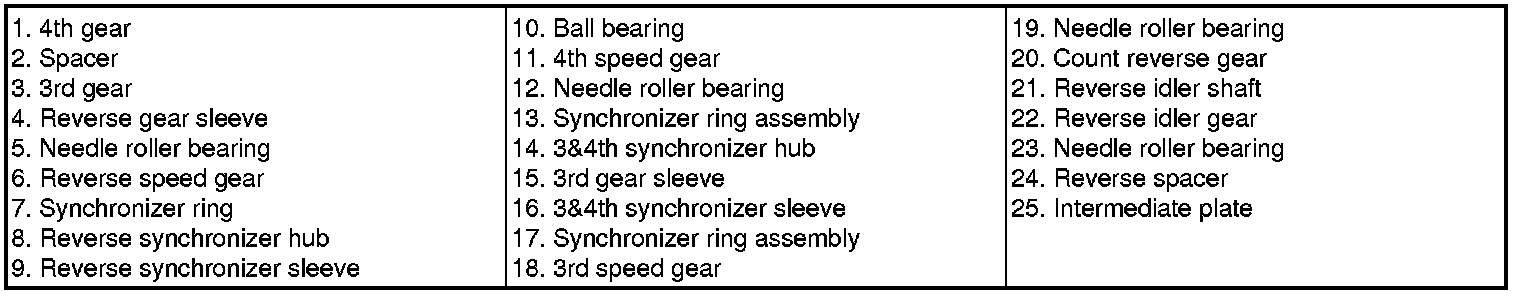

Components (2)
