Hyundai
>>
2010
>>
Genesis Coupe V6-3.8L
>>
Repair and Diagnosis
>>
Brakes and Traction Control
>>
Disc Brake System
>>
Brake Caliper
>>
Specifications
>>
Front Disc Brake
Front Disc Brake

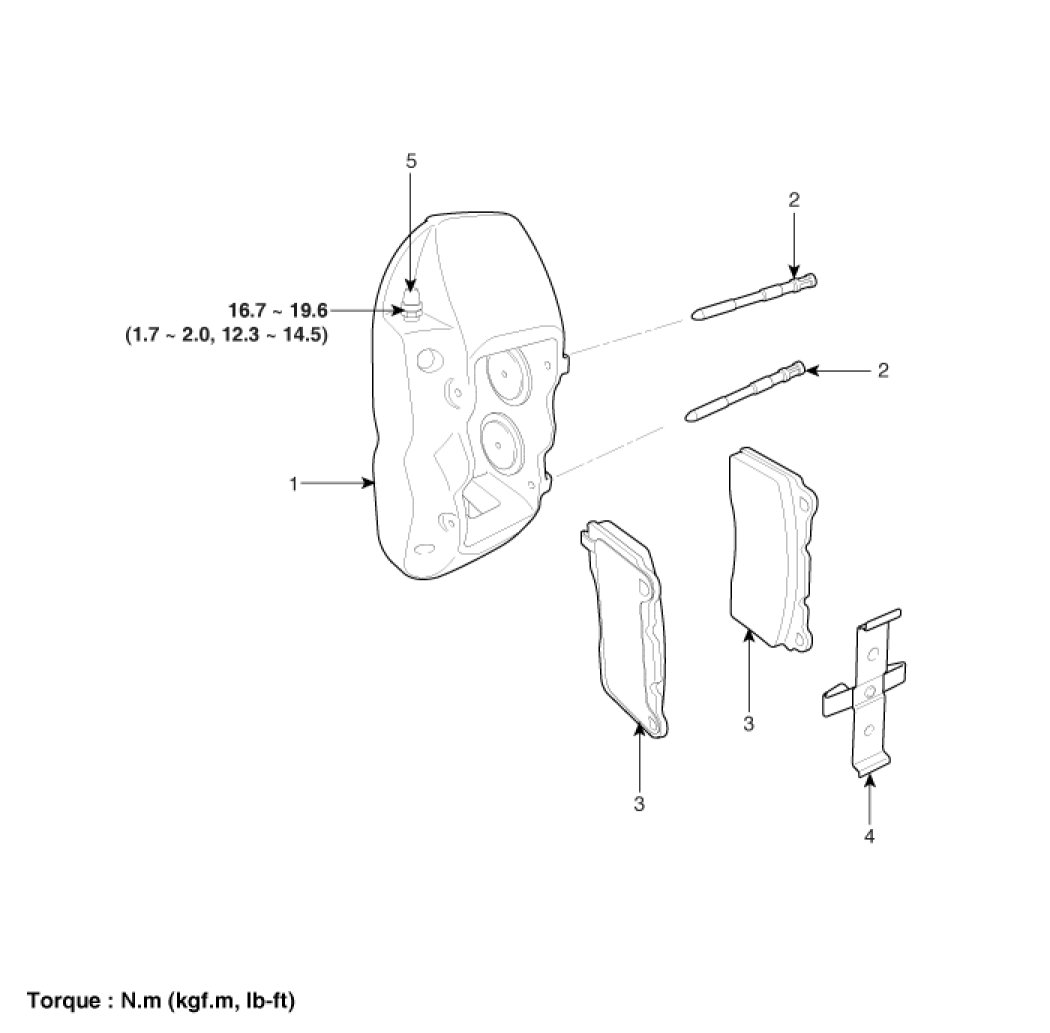

Components (1)

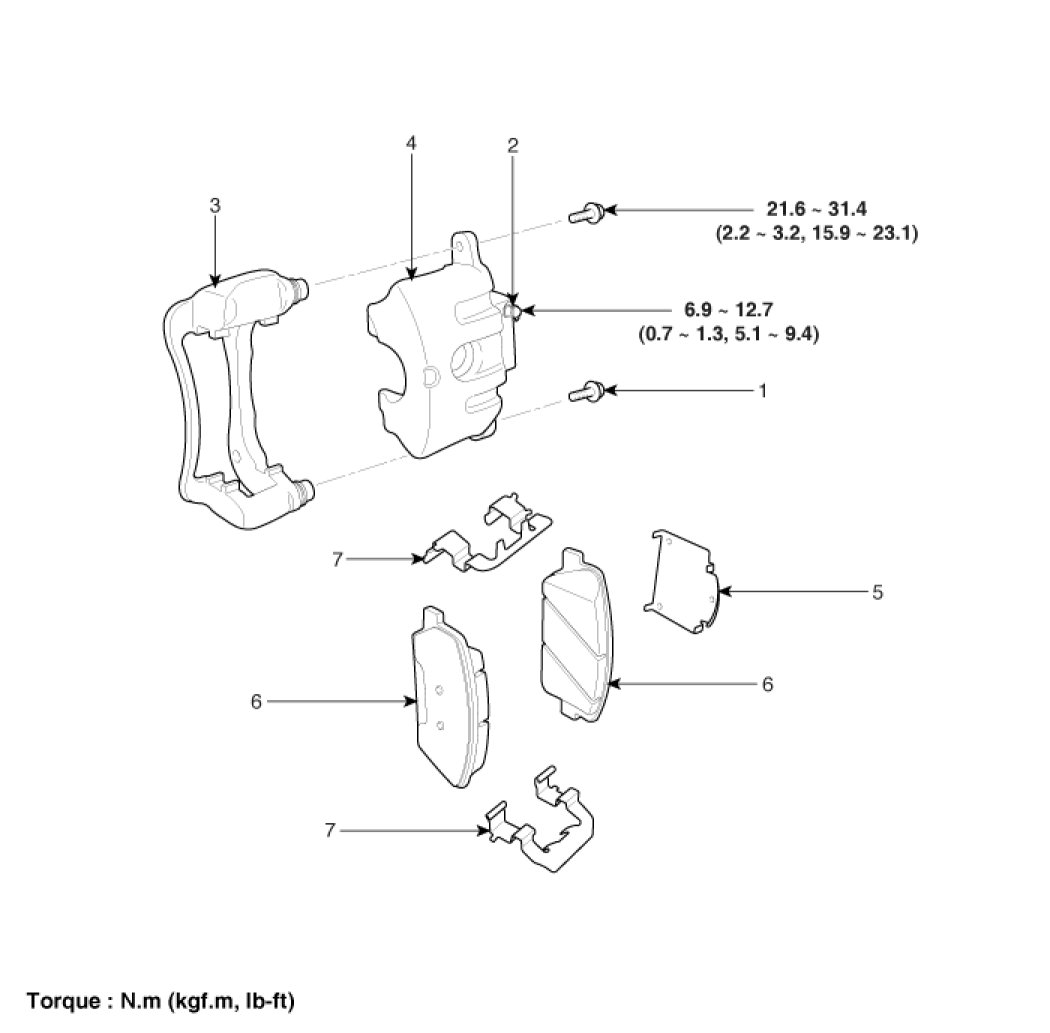

Components (2)
