Scantool Diagnostics

Engine

Engine Control - P0445 Evaporative Emission System-Purge Control Valve Circuit Shorted - Scantool Diagnostics

Monitor GDS Data

1. Connect GDS to Data Link Connector (DLC).
2. IG "ON".
3. Select "DTC" button, and then Press "DTC Status" to check DTC's information from the DTCs menu.
4. Read "DTC Status" parameter.

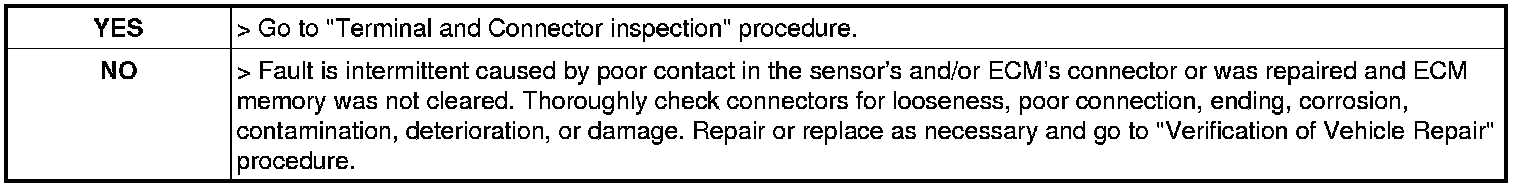

5. Is parameter displayed "Present fault"?
