Combination Switch: Testing and Inspection

Inspection

Lighting Switch Inspection
1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch






Lighting Switch (Auto Light)






Lighting Switch

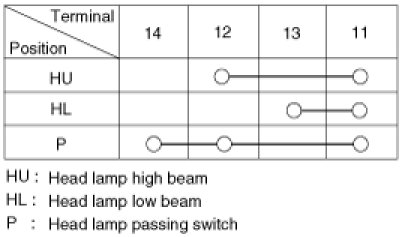

Dimmer And Passing Switch

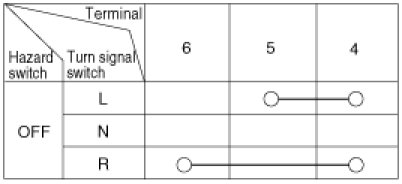

Turn Signal Switch

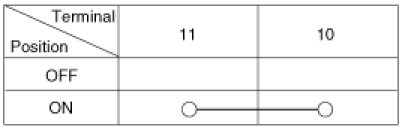

Front Fog Lamp






Wiper And Washer Switch Inspection
1. With the multi function switch in each position, make sure that continuity exists between the terminals below.
If continuity is not as specified, replace the multi-function switch.






Wiper Switch










Washer Switch






Rear Wiper & Washer Switch
