Scantool Diagnostics

Transmission

Automatic Transaxle - P0721 Output Speed Sensor Circuit Range/Performance - Scantool Diagnostics

Monitor GDS Data

1. Connect scantool to data link connector (DLC)
2. Engine "ON".
3. Monitor the "INPUT SPEED SENSOR" parameter on the scantool.
4. Drive the vehicle

Specification : Increasing Gradually
























Fig 1) P,N
Fig 2) "R"
Fig 3) "4" Range
Fig 4) "3" Range
Fig 5) "2" Range
Fig 6) "L" Range

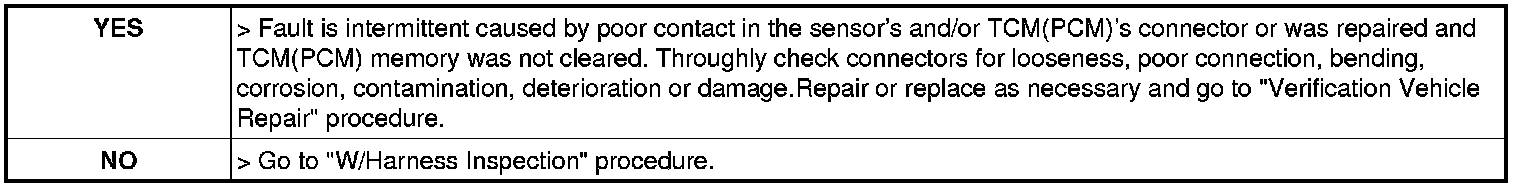

5. Does "input speed sensor " follow the referance data?
