Monitor Scantool data

Brake

Electronic Stability Control - C1623 CAN Time-out Steering Angle Sensor - Monitor Scantool data

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. Engine "ON".
3. Turn the steering wheel to the left or right.
4. Monitor the "STEERING ANGLE SENSOR" parameters on the Scantool.




Fig 1) Test Condition : Ignition "ON" & Engine "ON".
Normal Data

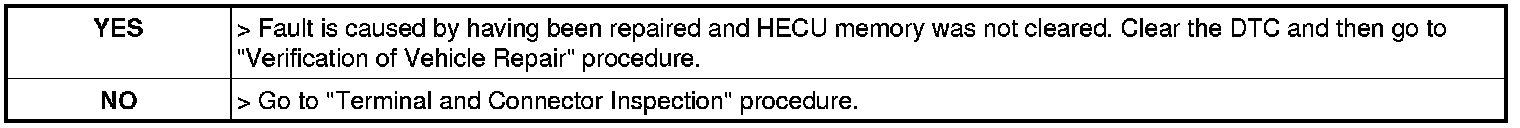

5. Whenever steering wheel is turned, is the steering sensor's scantool data changed?
