Home >> Hyundai >> 2010 >> Azera V6-3.3L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Number >> Diagram Set SD856 (Rear Curtain)

Diagram Set SD856 (Rear Curtain)

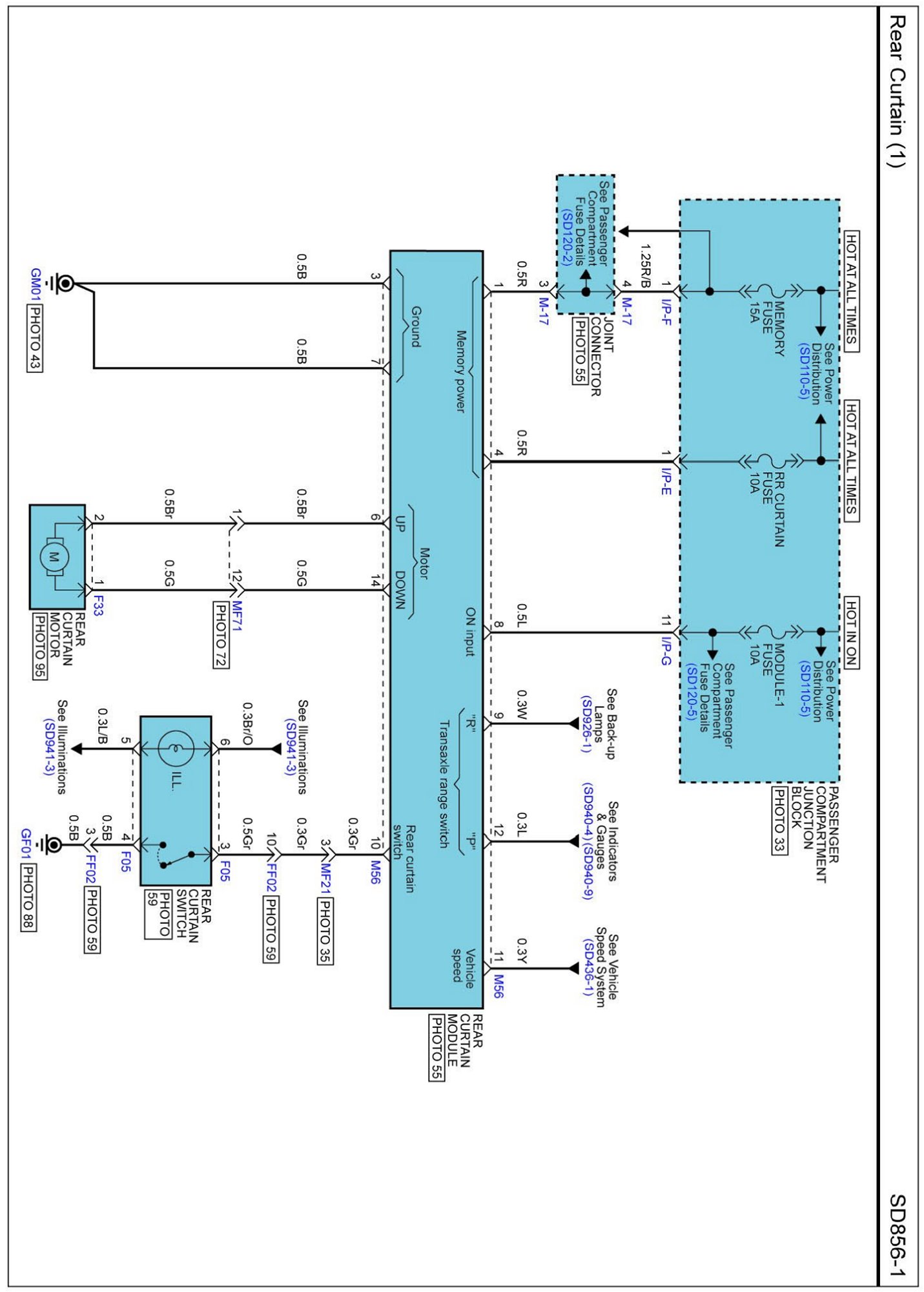

SD856-1 Rear Curtain (1):
