Component Inspection

Air Conditioner

Air Conditioner - B1238 Ambient Temperature Sensor Open (High) - Component Inspection

Component Inspection

Check Ambient sensor
1. Ignition "OFF".
2. Disconnect ambient sensor.

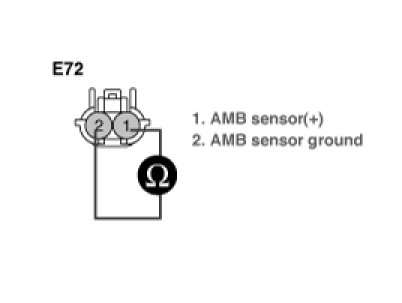

3. Measure resistance between terminal "1" and "2" of ambient sensor.

Specification : Refer the specifications in fig 3)

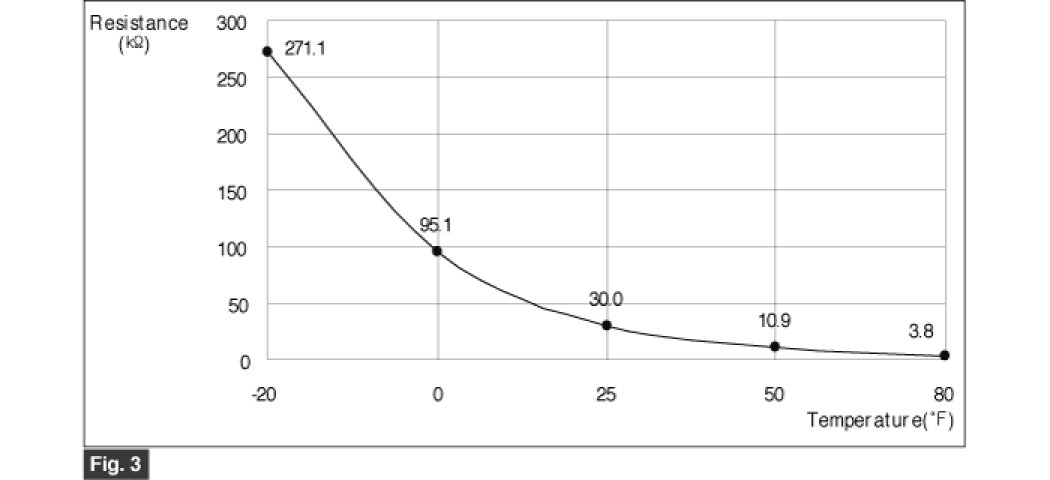

Fig.3) Specifications : Resistance value of ambient sensor as a function of temperature
4. Is the measured resistance within specifications in fig 3)? (tolerance limits ±3%)
