Repair Procedures

Removal

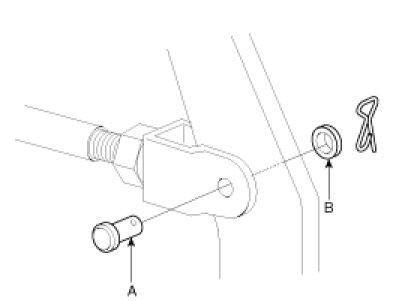

1. Remove the clevis pin (A), washer (B), and snap pin (C).

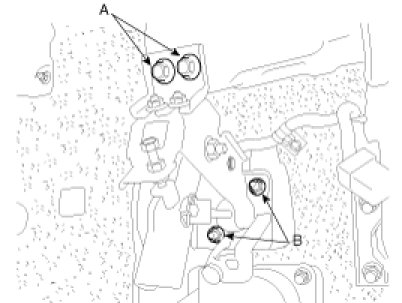

2. Remove the clutch pedal mounting bolts(A) and nuts(B).






Installation

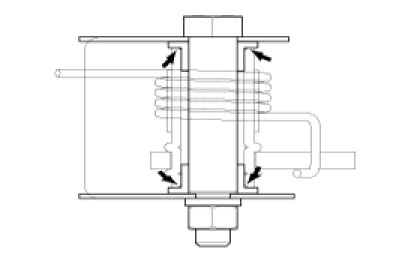

1. Apply the specified grease to the clutch pedal and bushings.

Chassis grease: SAE J310a, NLGI No.1





2. Install the clutch pedal mounting bolt(A) and nuts(B).

Tightening torque :
10 - 17 Nm(100 - 170 kgf.cm, 7 - 12 lb-ft)





3. Apply the specified grease to the clevis pin(A) and washer(B).

Wheel bearing grease: SAE J310, NLGI No.2





4. Install the push rod to the clutch pedal.
5. Adjust the clutch pedal within the standard value, then secure by tightening the lock nut.

Standard value
Free play (A)
6 - 13mm (0.24 - 0.51 in)
Height (B)
163.9 mm (6.45 in)
