Hyundai
>>
2010
>>
Accent L4-1.6L
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Air Bag Systems
Air Bag Systems

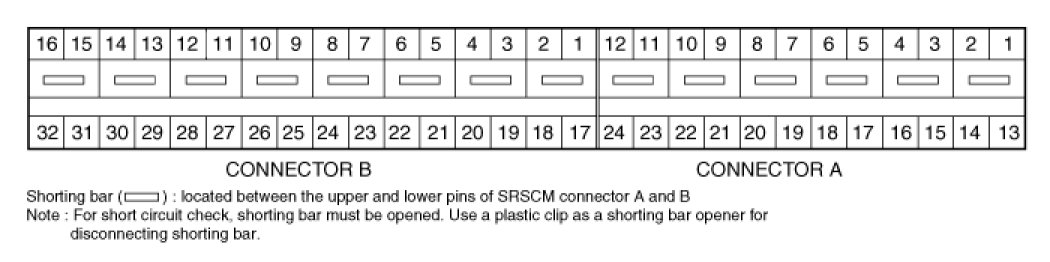

SRSCM Connector Terminal

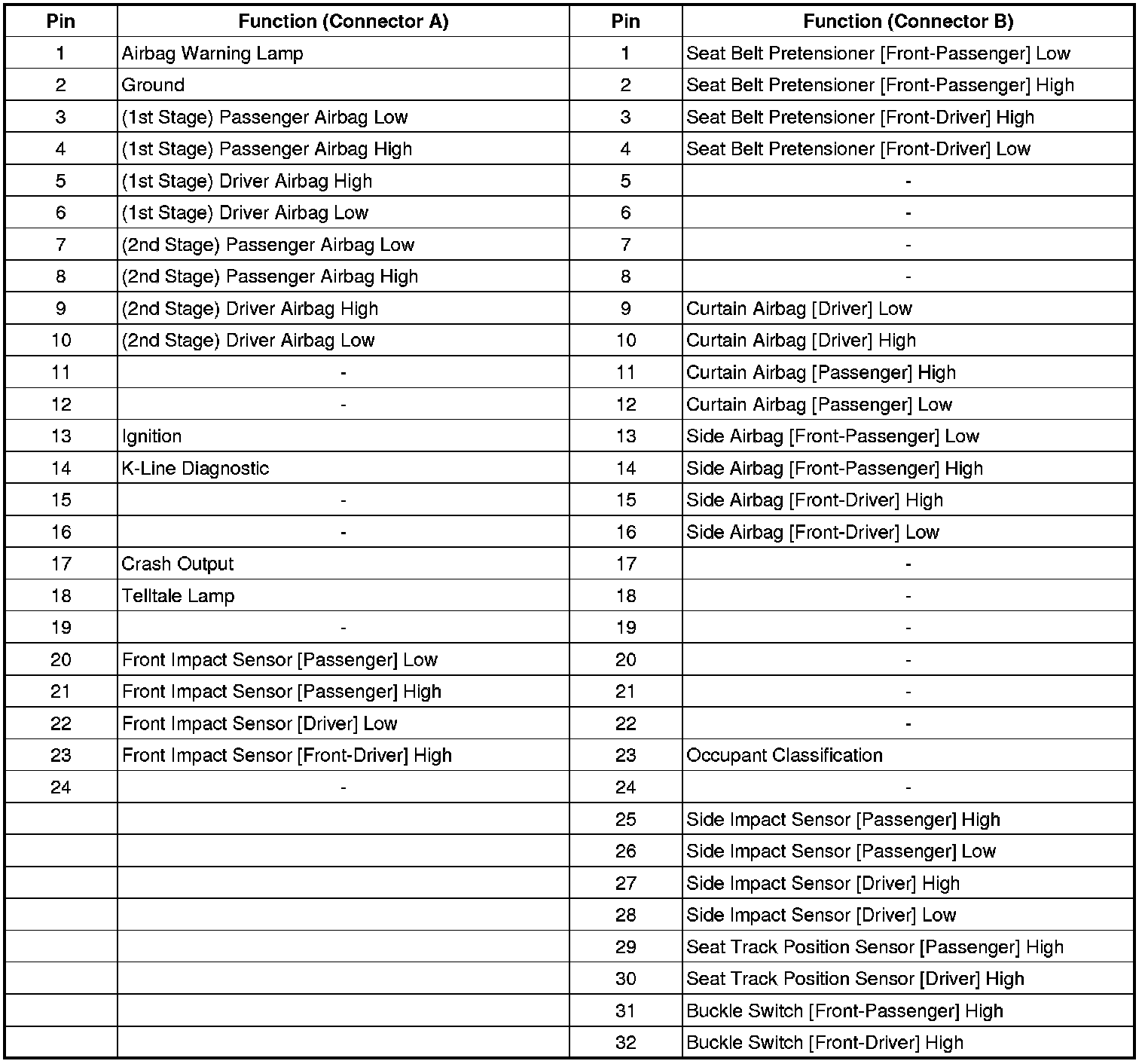

SRSCM Harness Connector
