Door Belt Weatherstrip Replacement





Replacement

Door Belt Weatherstrip Replacement
1. Remove front door trim.

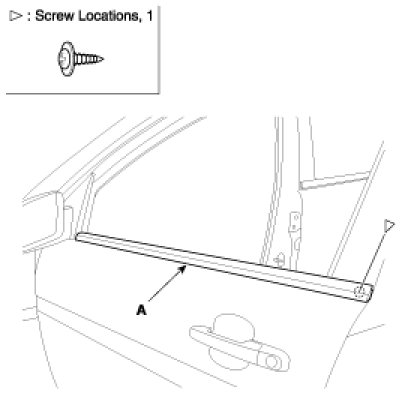

2. Remove the door belt weatherstrip(A).




3. Installation is the reverse of removal.
