Front Stabilizer Bar

Replacement

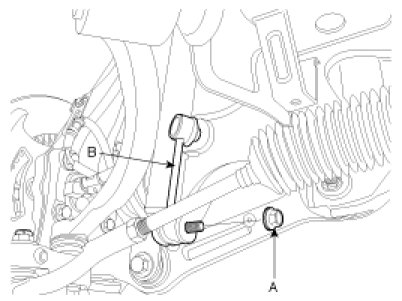

1. Disconnect the stabilizer link (B) with the front strut assembly by loosening the nuts (A).

Tightening torque:
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)

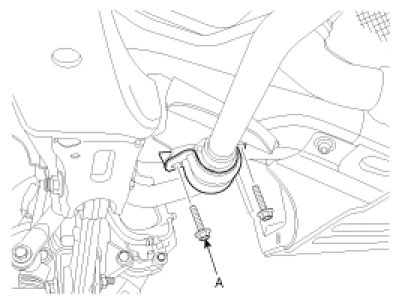

2. Disconnect the stabilizer bar with the frame by loosening the bolts (A).

Tightening torque:
45 - 55N.m (4.5 - 5.5kgf.m, 33 - 40lb-ft)

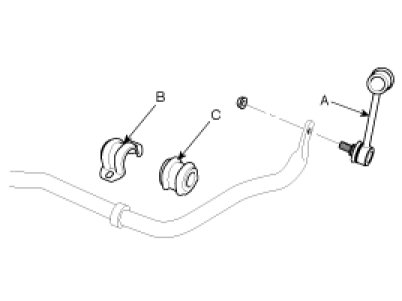

3. Remove the stabilizer link (A), clamp (B), bushing (C).

Tightening torque:
100 - 120N.m (10.0 - 12.0kgf.m, 72 - 87lb-ft)





4. Installation is the reverse of removal.

CAUTION:
Do not use the lock nuts again.
