Collision Avoidance and Parking Assist Systems
>>
Parking Assist Control Module
Parking Assist Control Module
Circuit Diagram

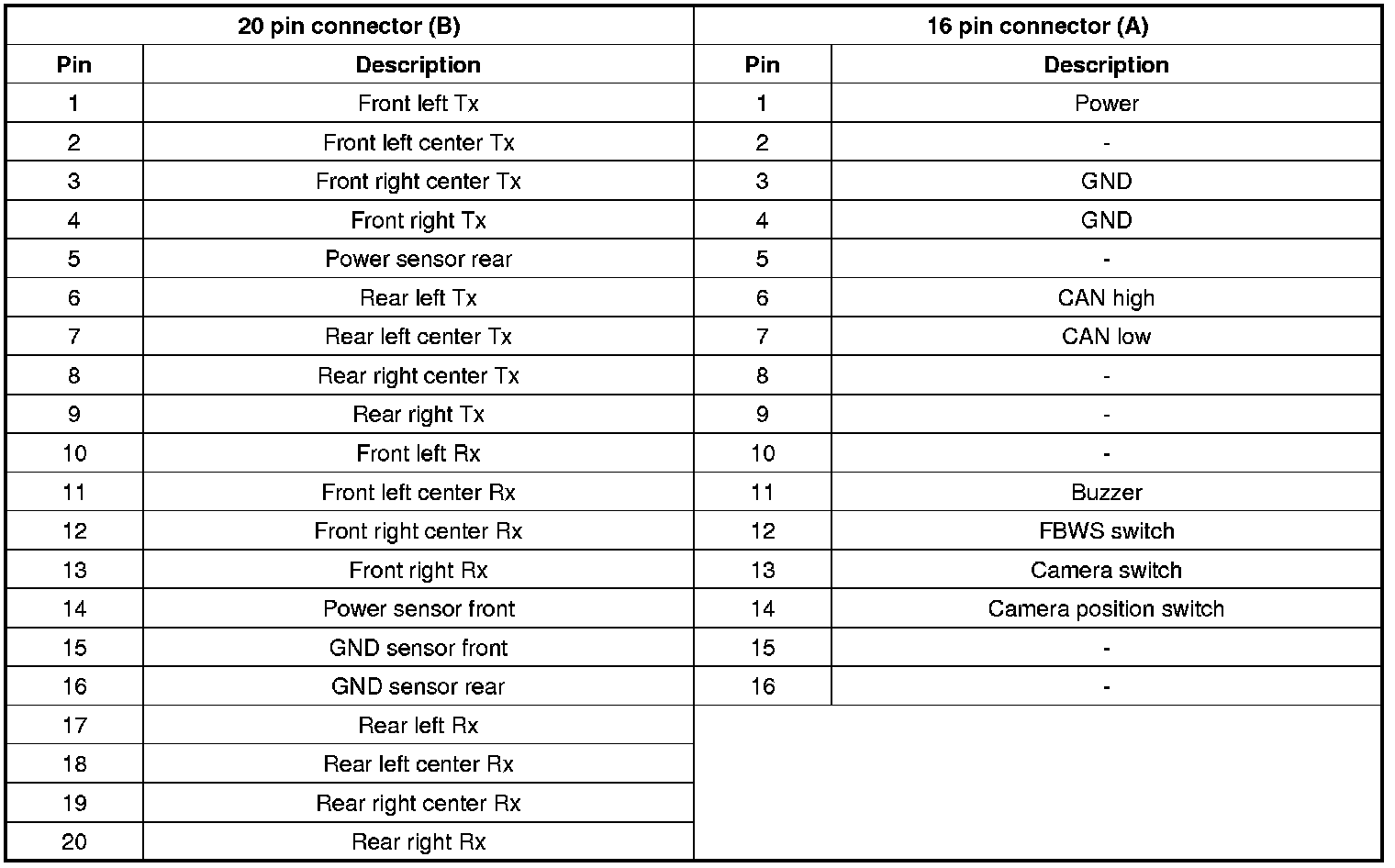

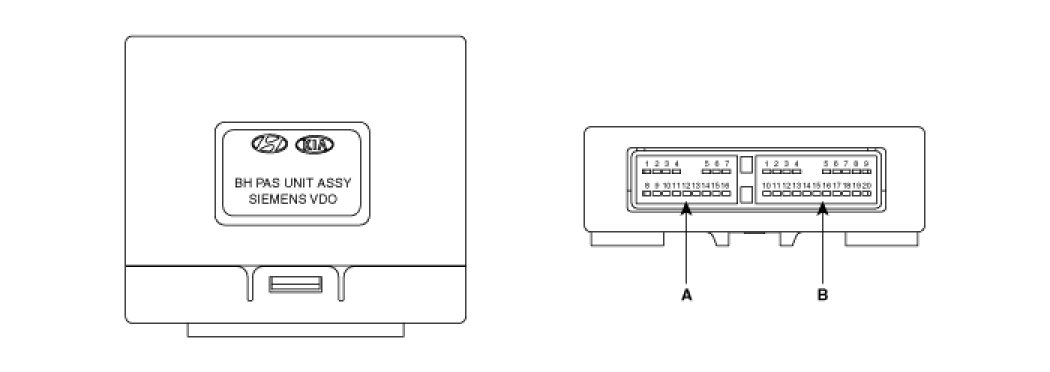

Pin configuration
