General Information

Component Location





General Description

Head unit is self diagnostic and control system that communicate with navigation H/UNIT, voice recognition, DVD Changer + MP3 & WMA files play, USB & iPOD, bluetooth handsfree, Body control system and information display of DIS on the MOST network.

DTC Description

This code is set when Head unit does not read the disc or DVD Changer has a mechanical or electronically problem.

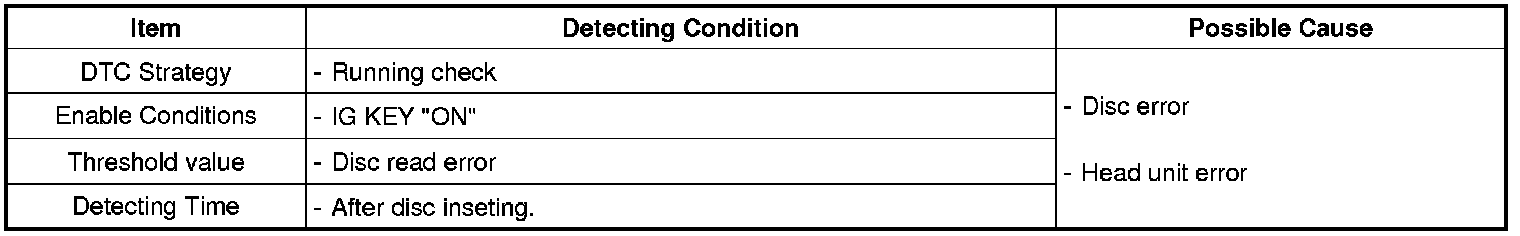

DTC Detecting Condition





Diagnostic Circuit Diagram
