Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC)
2. IG "ON" & Engine "OFF".
3. Check the component status by wake up line test at Inspection/Test mode.








FIG. 1) Start of wake up line diagnosis test
FIG. 2) Result of Wake up line diagnosis test

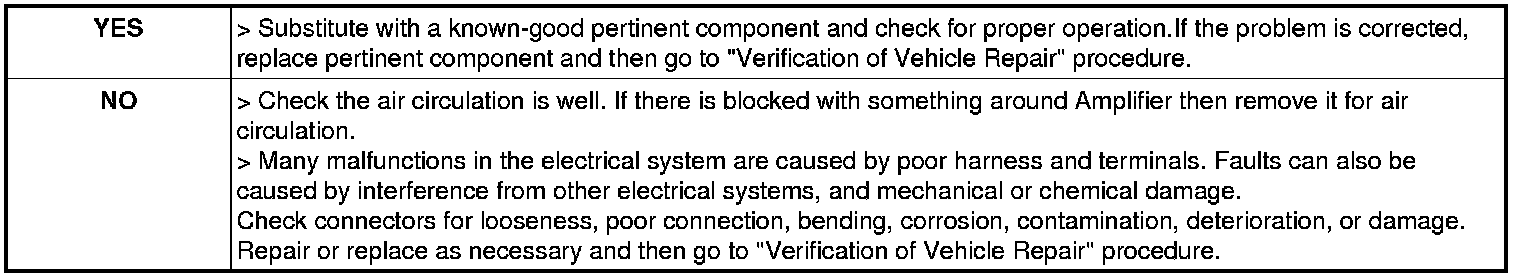

4. Do you get a defect at component by Wake up line test ?
