Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Select "Diagnostic Trouble Codes (DTCs)"mode and monitor "DTC Status" parameter.
4. Clear recorded DTC using Scan tool.

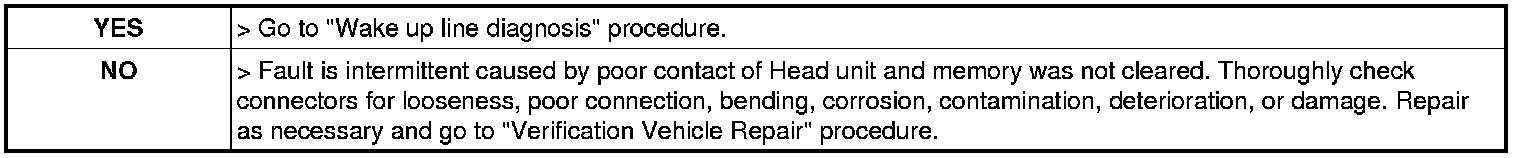

5. Is the DTC present ?






Wake up line diagnosis

1. Connect scantool to Data Link Connector (DLC).
2. Ignition "ON" & engine "OFF".
3. Select "Wake up line diagnosis"mode and monitor "Test results"








FIG. 1) Start of Wake up line diagnosis
FIG. 2) Completion of Wake up line diagnosis

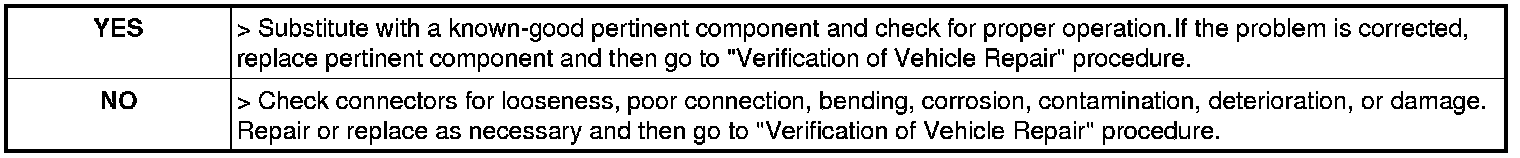

4. Has a problem been found ?
