Component Inspection

Component Inspection

Check Generator
1. Engine starts.
2. Maintain ENG RPM 2, 500 RPM over 2 minutes.
3. Measure voltage between the battery terminal (+) and the battery terminal (-).

Specification : Approx. 12.5 - 14.7V

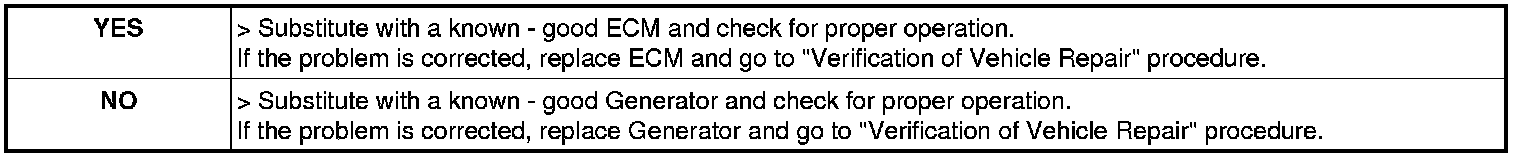

4. Is the measured voltage within specification ?
