Component Inspection

Component Inspection

Check brake light switch
1. IG "OFF"
2. Disconnect brake light switch connector.
3. Measure resistance between both ends of the brake light switch connector.

Specification :
Resistance between both ends of the Brake Light Switch (A)
- 0 ohms (when the brake light switch is pressed) Infinity ohms (when the brake light switch is released)
Resistance between both ends of the Brake Switch (B)
- Infinity ohms (when the brake light switch is pressed) 0 ohms (when the brake light switch is released)

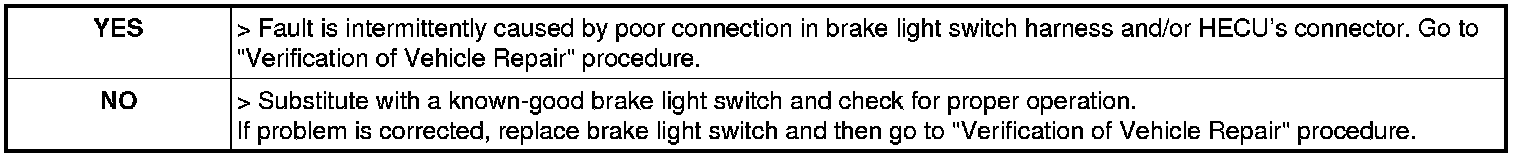

4. Is the measured value within specifications ?
