Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG "ON"
3. Check the service data related to "Yaw-rate and Lateral G sensor" on the scantool.

Specification : Approx. ± 0.01G





Fig. 1) Normal service data at IG "ON"

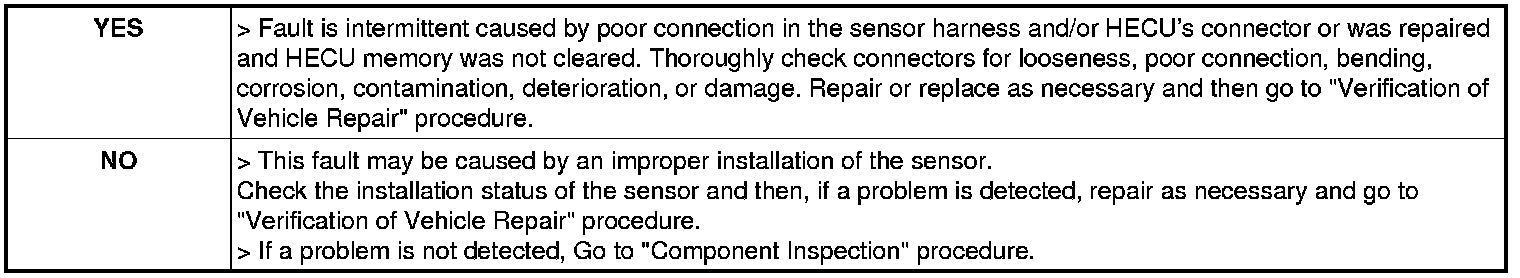

4. Is the service data normal ?
