Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG ON or Engine ON
3. Monitor the "Ignition Voltage" parameter on the scantool.

Specification : The service data of "Ignition" is "ON" at the idle state.





Fig. 1) Normal data at the idle state

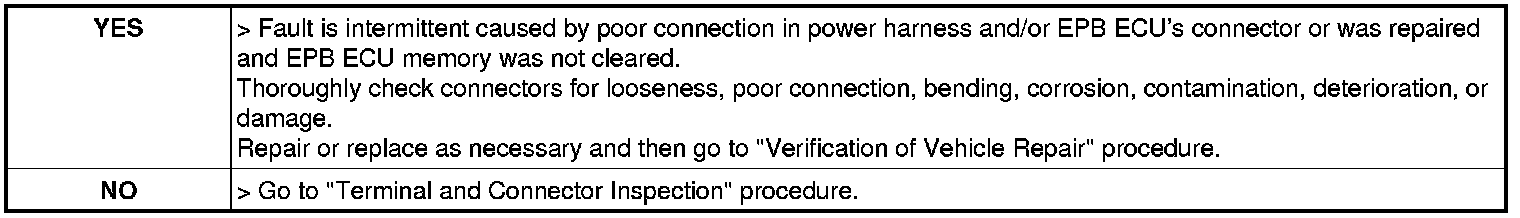

4. Is the ignition voltage normal ?
