Component Inspection

Component Inspection

Check Console temp A_actuator
1. Ignition "OFF"
2. Disconnect Console temp actuator "A" and A/C control unit main harness connector.
3. Connect (+) terminal of battery to WARM (+) of Console temp actuator "A" and (-) terminal to COOL (-). (Component side)
4. Verify that the temperature actuator operates to the cool position
5. Verify that the temperature actuator operates to the warm position with reverse connecting. (WARM (+) and COOL (-) ). (Component side)

Specification : Refer the specifications in Fig. 1)





Fig. 1)

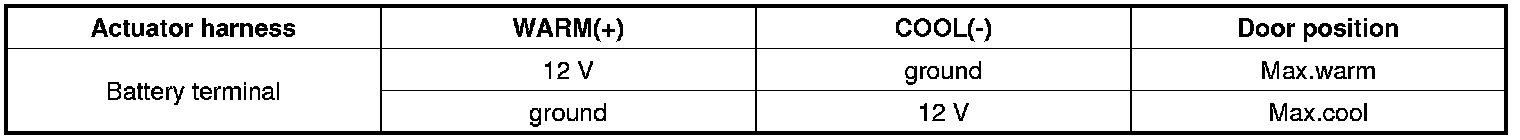

FIG. 1) ** Function of the actuator motor according to terminal connection type. (observe safety regulations)

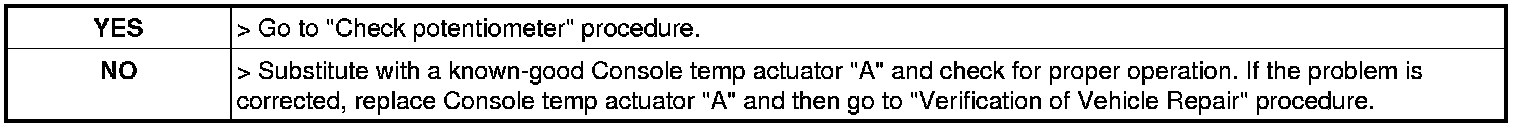

6. Is "Door position" display near the specified value ?





Check potentiometer
1. Ignition "OFF"
2. Connect Console temp actuator "A" and A/C control unit main harness connector.
3. Ignition "ON"
4. Measure voltage between Signal (F/B) terminal of Console temp actuator "A" harness connector and Sensor ground (-) terminal of A/C-ECU harness connector. (Component side)

Specification : Refer the specifications in Fig. 2)





Fig. 2)

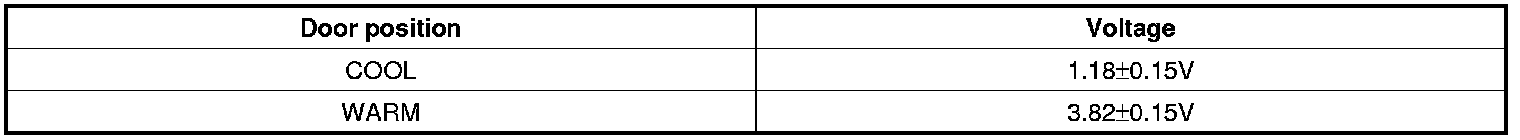

Fig. 2) ** Voltage value of Console temp actuator "A" as a function of position of mode switch

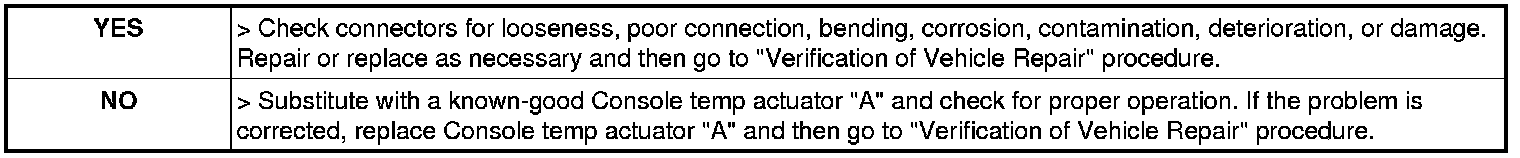

5. Is "voltage" display near the specified value ?
