Scantool Diagnostics

Monitor Scantool Data

1. Connect scan tool to data link connector (DLC).
2. Engine "ON" and Head lamp"ON"
3. Monitor the "Sensor angle front, Sensor angle rear" parameters on the scantool

Specification : below -128 ~ +125 mm

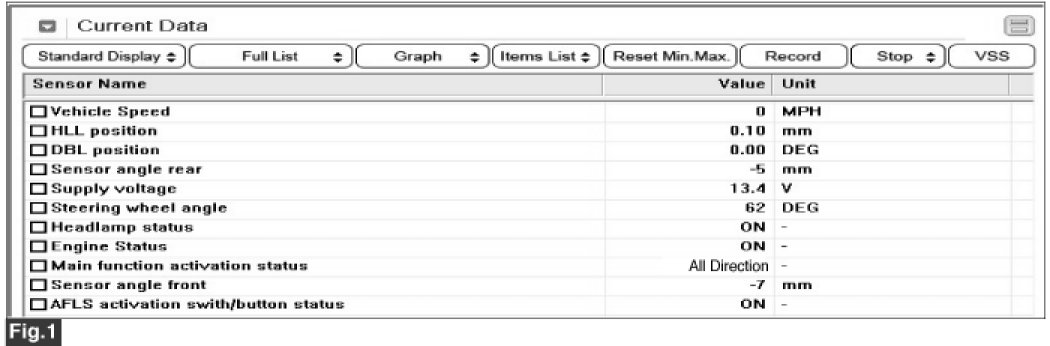

Fig 1) Engine "ON"

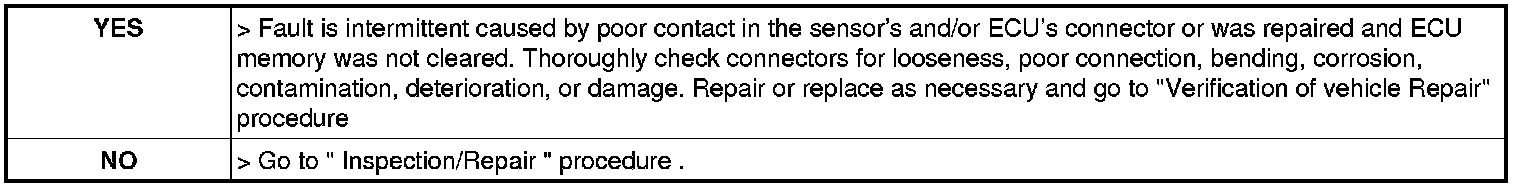

4. Is parameter displayed within specifications ?
