Component Inspection

Component Inspection

Check resistance of fuel level sender
1. IG OFF.
2. Disconnect fuel level sender A, B connectors.
3. Measure resistance between both ends of fuel level sender A, B connectors with varying a float.

Specification : 8 ohms (Full) ~ 200 ohms (Empty) depending on fuel level

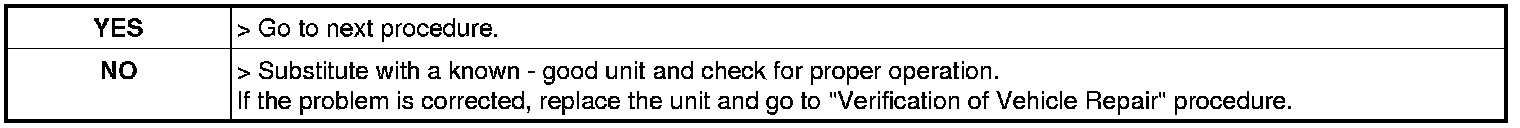

4. Are resistances within specifications ?
