Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. ENG "ON"
3. Monitor the "Yaw rate" parameters on the scantool. ( Vdc's current data)

Specification : below 0G

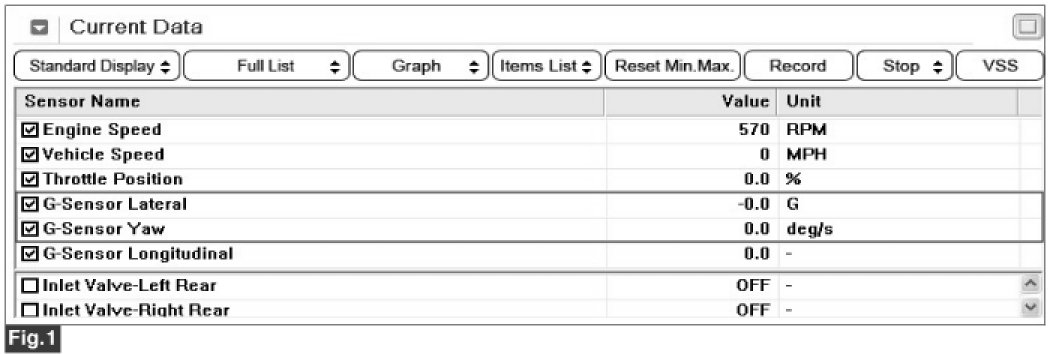

Fig 1) Engine "ON" - ( Vdc's current data)

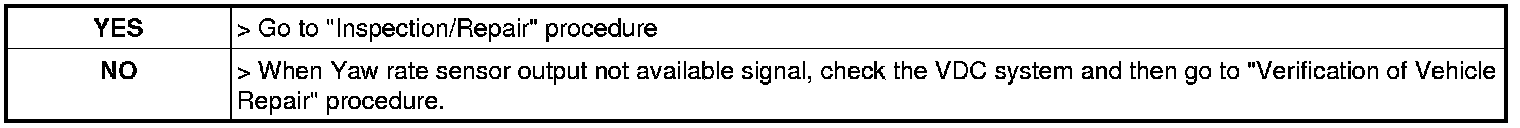

4. Is parameter displayed within specifications ?
