Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. ENG "ON"
3. Monitor the " RPM" parameters on the scantool.
(AFLS and ECM's current data)

Specification : 500 rpm above -> ON









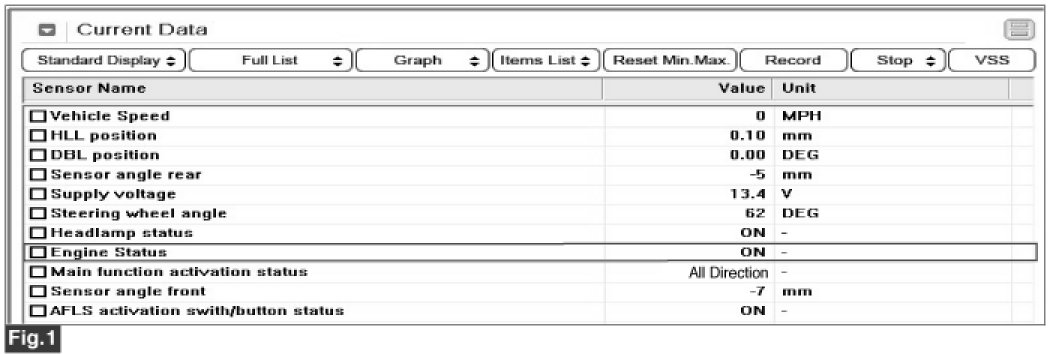

Fig 1) ENG "ON" (ECM's current data)

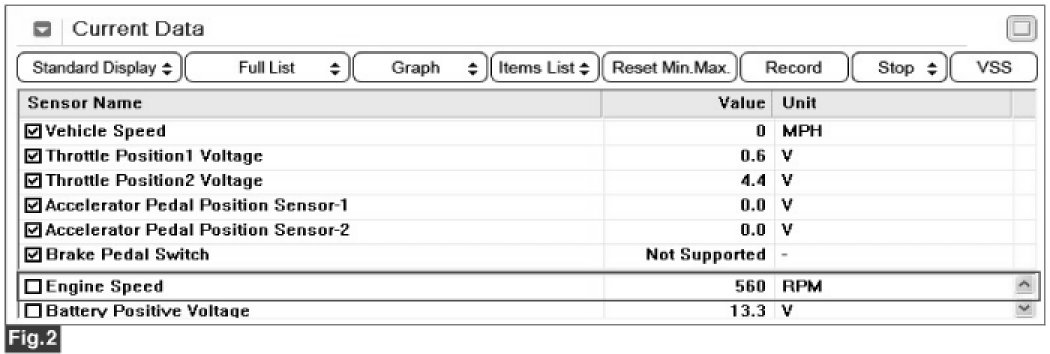

Fig 2) Engine "ON" (ECM's current data)

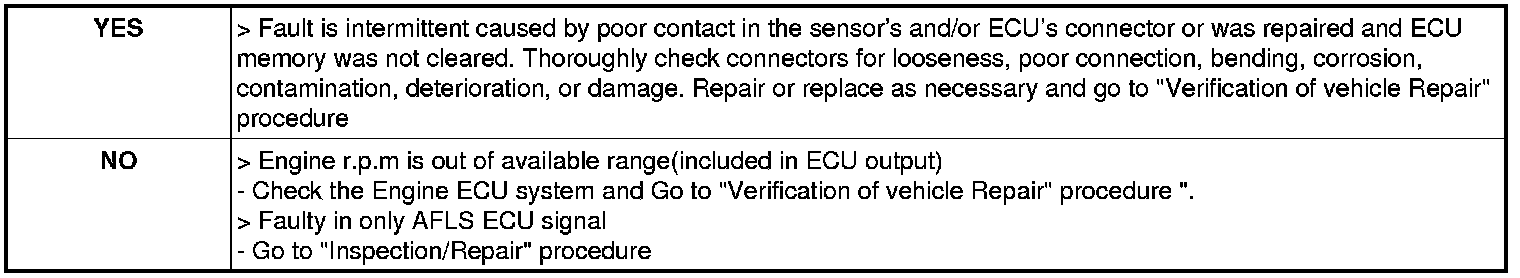

4. Is parameter displayed within specifications ?
