Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. IG KEY "ON" & ENG "OFF"
3. Monitor the "TPS" parameters on the scantool. (ECM's current data)

Specification : APS1 : 0V ~ 5V (APS2: 0V ~ 2.5V)





Fig 1) ENG "ON" (ECM's current data)

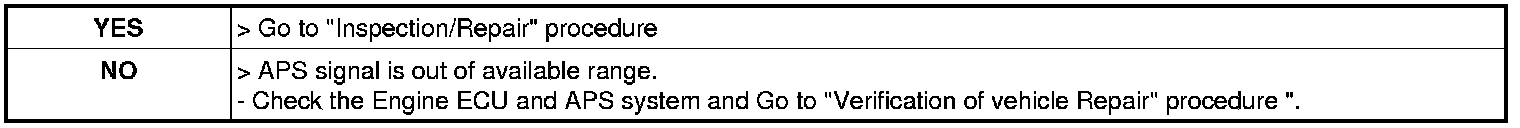

4. Is parameter displayed within specifications ?
