Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Data Link Connector (DLC).
2. Engine "ON" and Head lamp"ON"
3. Turn the steering wheel to the left or right.
4. Monitor the "Steering angle sensor" parameters on the scantool.
(Check the data of steering angle sensor with EHPS, Vdc system and confirm output values related to CAN communication.)

Specification : If the parameters are changed according to wheel position during steering the wheel (-126 - 127)









Fig 1) Engine "ON"
Fig 2) Engine "ON" -EHPS

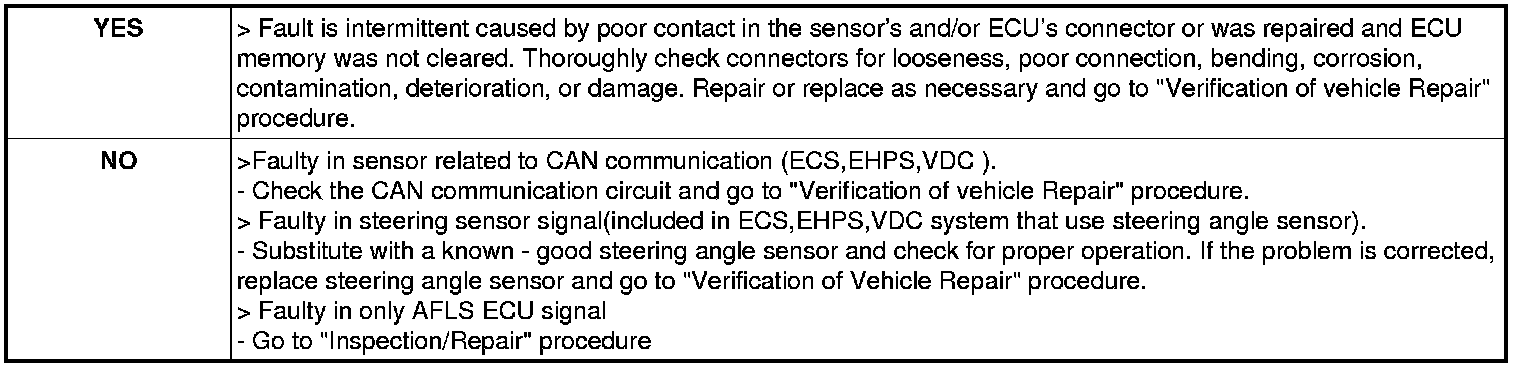

5. Steering angle sensor signal is changed according to steering wheel ?
