Repair Procedures

Replacement

1. Loosen the mount bolts and then remove the bracket(A).

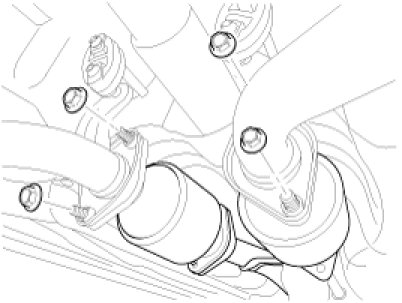

2. Loosen the muffler mount nut and then remove the muffler(A).

Tightening torque :
40 - 60N.m (4.0 - 6.0kgf.m, 28.9 - 43.3lb-ft)






Tightening torque :
40 - 60N.m (4.0 - 6.0kgf.m, 28.9 - 43.3lb-ft)





3. Remove the rear muffler (A).

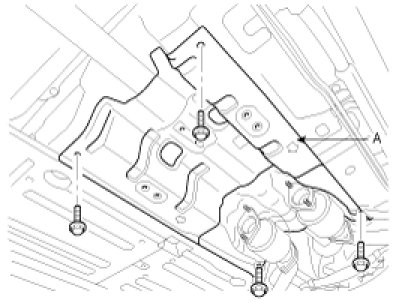

4. Loosen the mount bolts and then aluminum cover(A).

Tightening torque :
5 - 8N.m (0.5 - 0.8kgf.m, 3.6 - 5.7lb-ft)

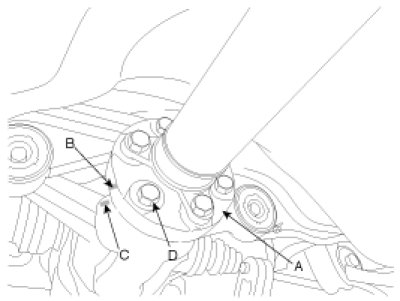

5. Loosen the propeller shaft rear mount bolts(A).

Tightening torque :
90 - 110N.m (9.0 - 11.0kgf.m, 65.0 - 79.5lb-ft)





6. Remove the bracket(A)




7. Remove the differential carrier assembly mount bolts(B).

Tightening torque :
80 - 100N.m (8.0 - 10.0kgf.m, 57.8 - 72.3lb-ft)






Tightening torque :
80 - 100N.m (8.0 - 10.0kgf.m, 57.8 - 72.3lb-ft)

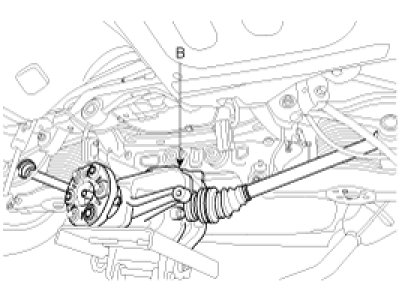

8. Remove the rear drive shaft assembly(B).

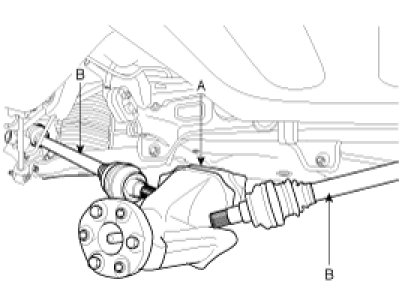

9. Insert a pry bar(A) between the differential case(A) and joint case, and separate the driveshaft(B) from the differential case.

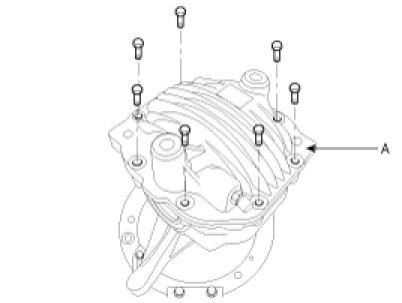

10. Loosen the mount bolts and then remove the cover(A).




11. Installation is the reverse order of removal.
