Rear Stabilizer Bar

Replacement

1. Remove the rear wheel & tire.

Tightening torque:
90 - 110N.m (9.0 - 11.0kgf.m, 65 - 80lb-ft)

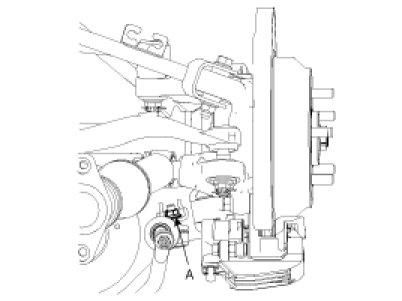

2. Loosen the nuts (A).

Tightening torque:
50 - 65N.m (5.0 - 6.5kgf.m, 36 - 47lb-ft)

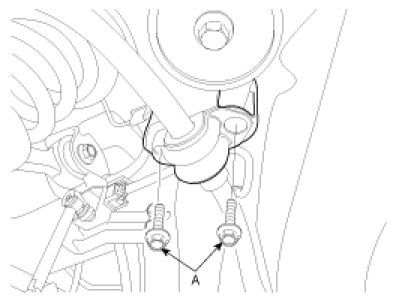

3. Loosen the bolts (A).

Tightening torque:
45 - 55N.m (4.5 - 5.5kgf.m, 33 - 40lb-ft)

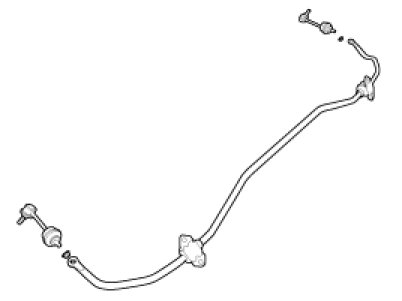

4. Disconnect the rear stabilizer link with the stabilizer bar.

Tightening torque:
50 - 65N.m (5.0 - 6.5kgf.m, 36 - 47lb-ft)





5. Installation is the reverse of removal.
