Overhaul

Normal Power Steering

Disassembly

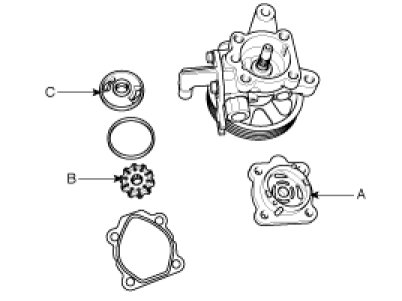

1. Remove the pump cover (A) and rotor & vanes gasket (B), side plate (C).

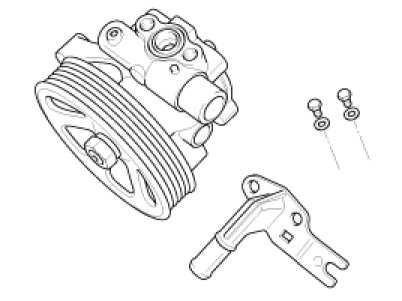

2. Remove the suction tube.

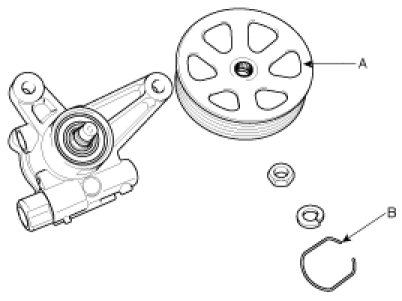

3. Remove the pump pulley & shaft (A), Oil seal (B).




4. Installation is the reverse of the removal.
