Specifications
>>
Electrical Specifications
>>
Electronic Throttle Actuator
>>
Engine Control System
Engine Control System
Specification

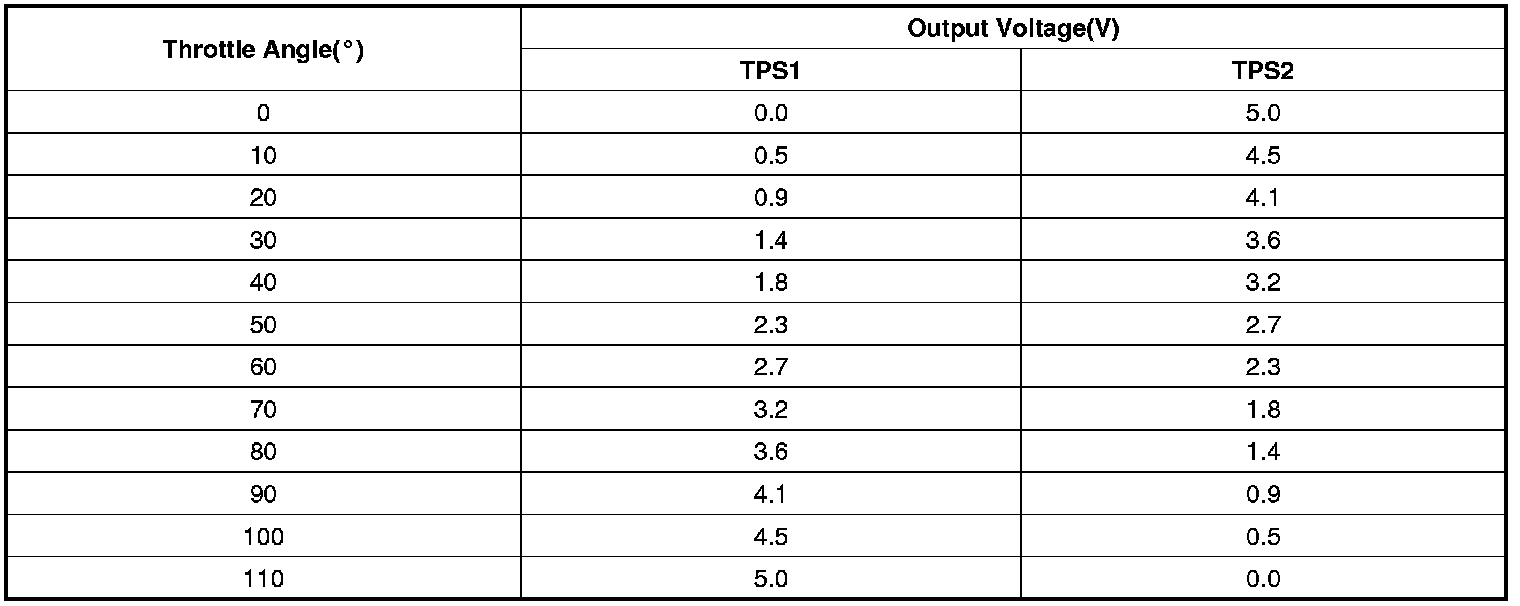

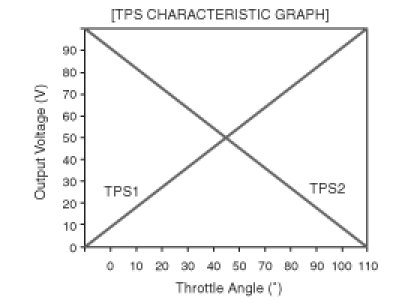

[Throttle Position Sensor (TPS)]
[ETC Motor]
