Home >> Hyundai >> 2009 >> Genesis Sedan V6-3.8L >> Repair and Diagnosis >> Specifications >> Electrical Specifications >> Control Module, A/T

Control Module, A/T

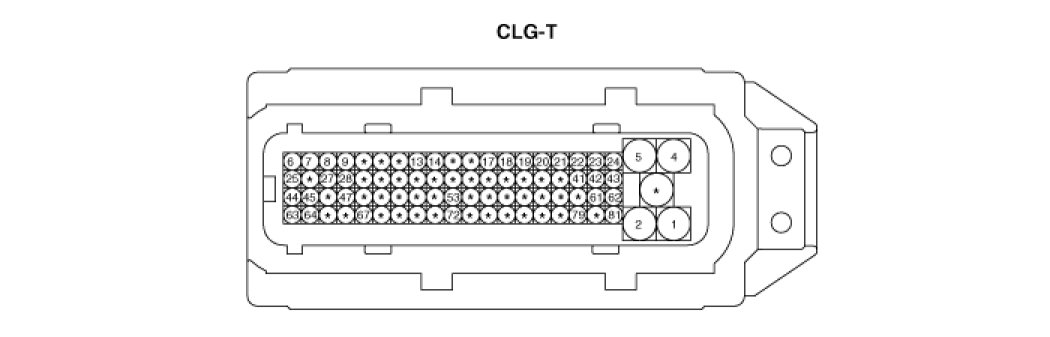

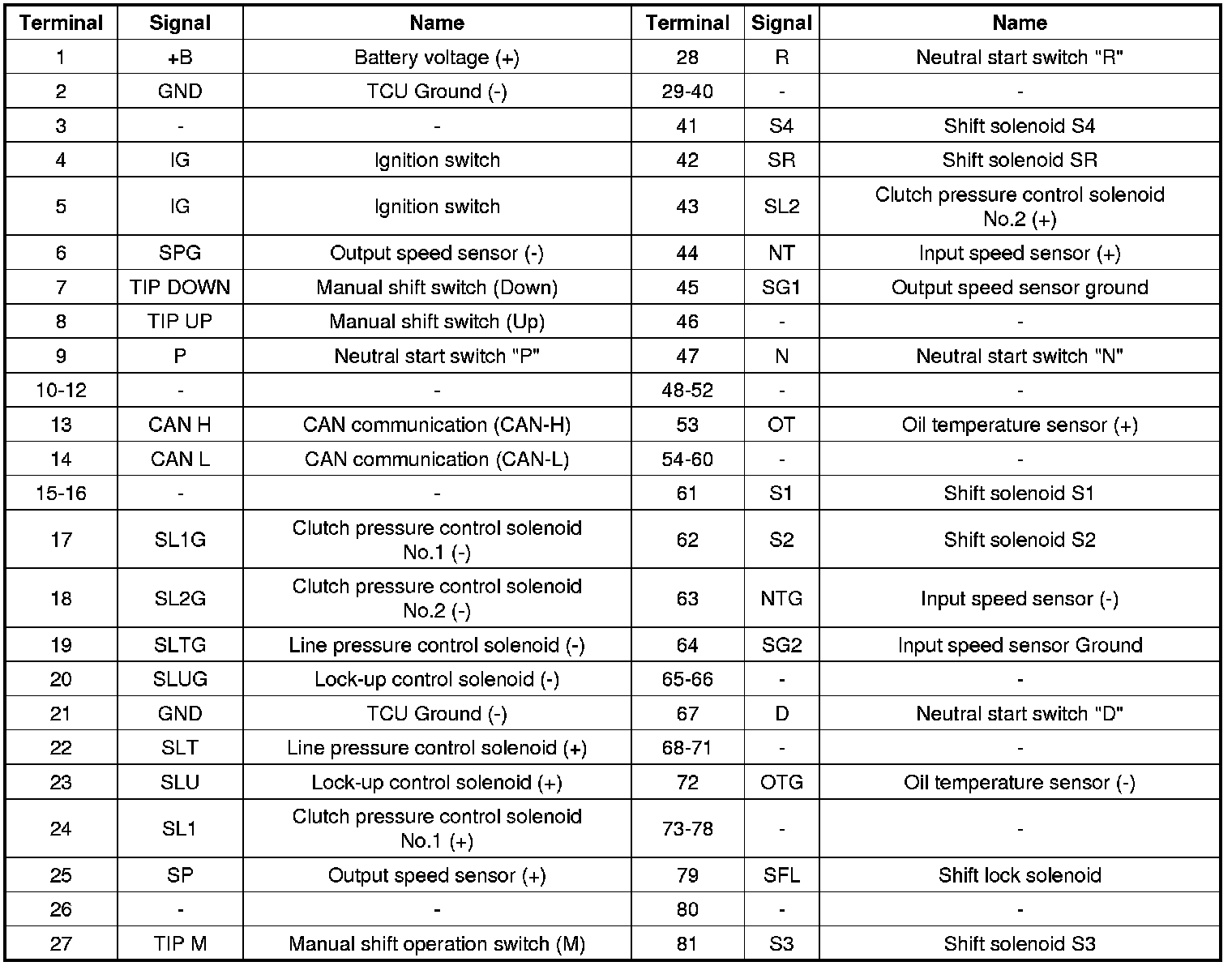

Terminal of TCU
