General Information

Component Location





General Description

Head unit is self diagnostic and control system that communicate with navigation H/UNIT, voice recognition, DVD Changer + MP3 & WMA files play, USB & iPOD, bluetooth handsfree, Body control system and information display of DIS on the MOST network.

DTC Description

This code is set when the supplied power of Head unit is under 9V.

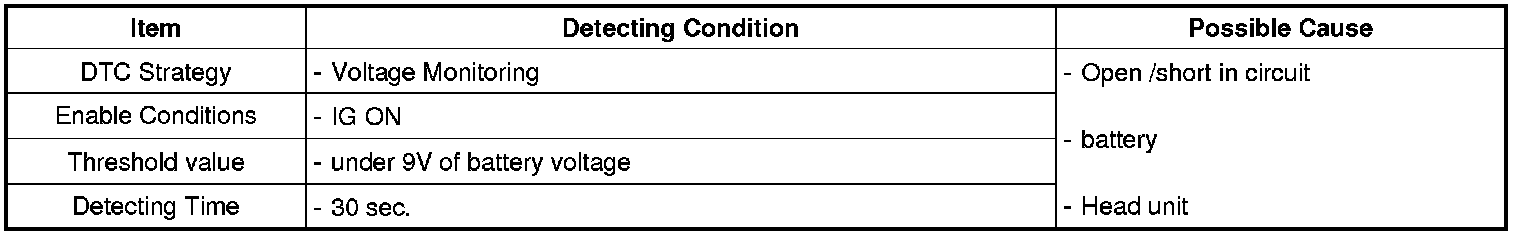

DTC Detecting Condition





Diagnostic Circuit Diagram
