General Information

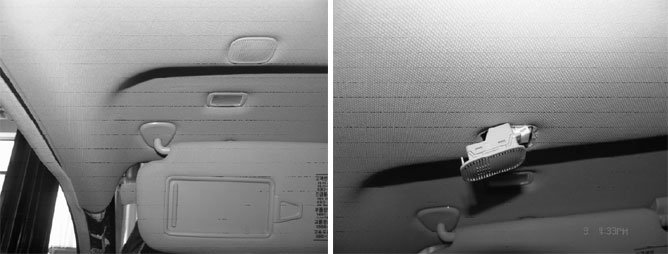

Component Location





General Description

A microphone is
1. a high effective AKG microphone
2. installed at the ceiling of driver seat
3. speech received and handsfree

DTC Description

This code is set when a circuit of a microphone short to chassis ground.

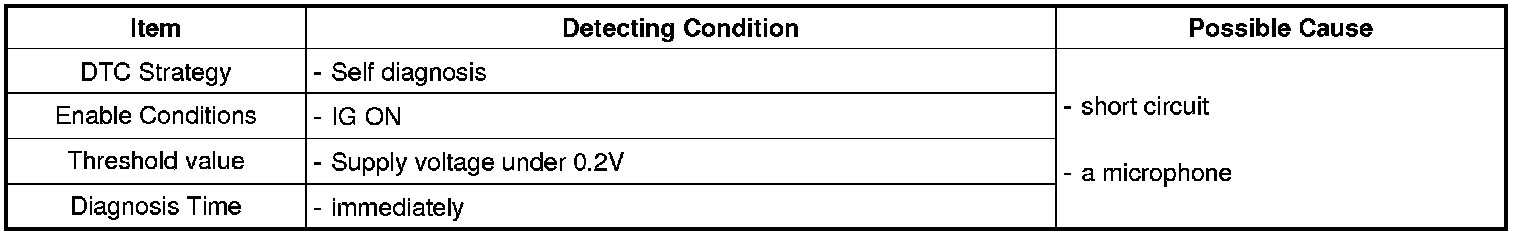

DTC Detecting Condition





Diagnostic Circuit Diagram
