General Information

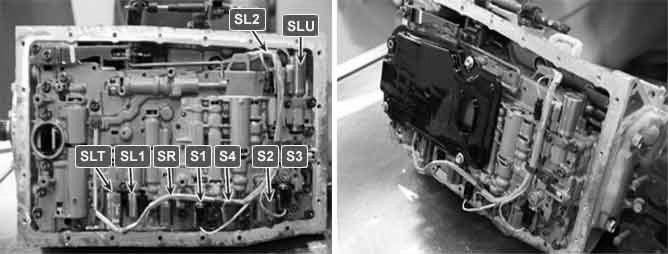

Component Location





General Description

4 shift solenoid valves are installed directly in valve-body. The solenoids operates of ON and OFF by the control signal from TCU.
Combinations of 4 solenoids, S1, S2, S3 and S4, changes gear ranges (1st to 6th)

DTC Description

TCM set this code If detected "OFF (0V)" signal When TCM output "ON (12V)" signal to "Shift control solenoid valve B (S2)"

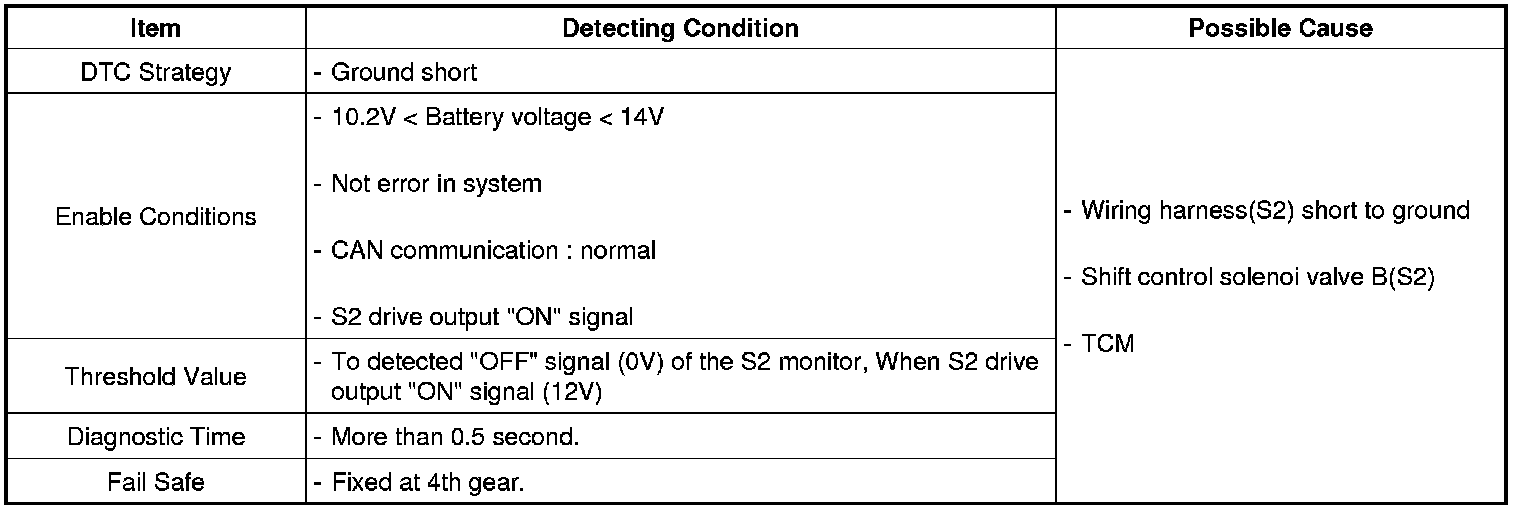

DTC Detecting Condition





Specification

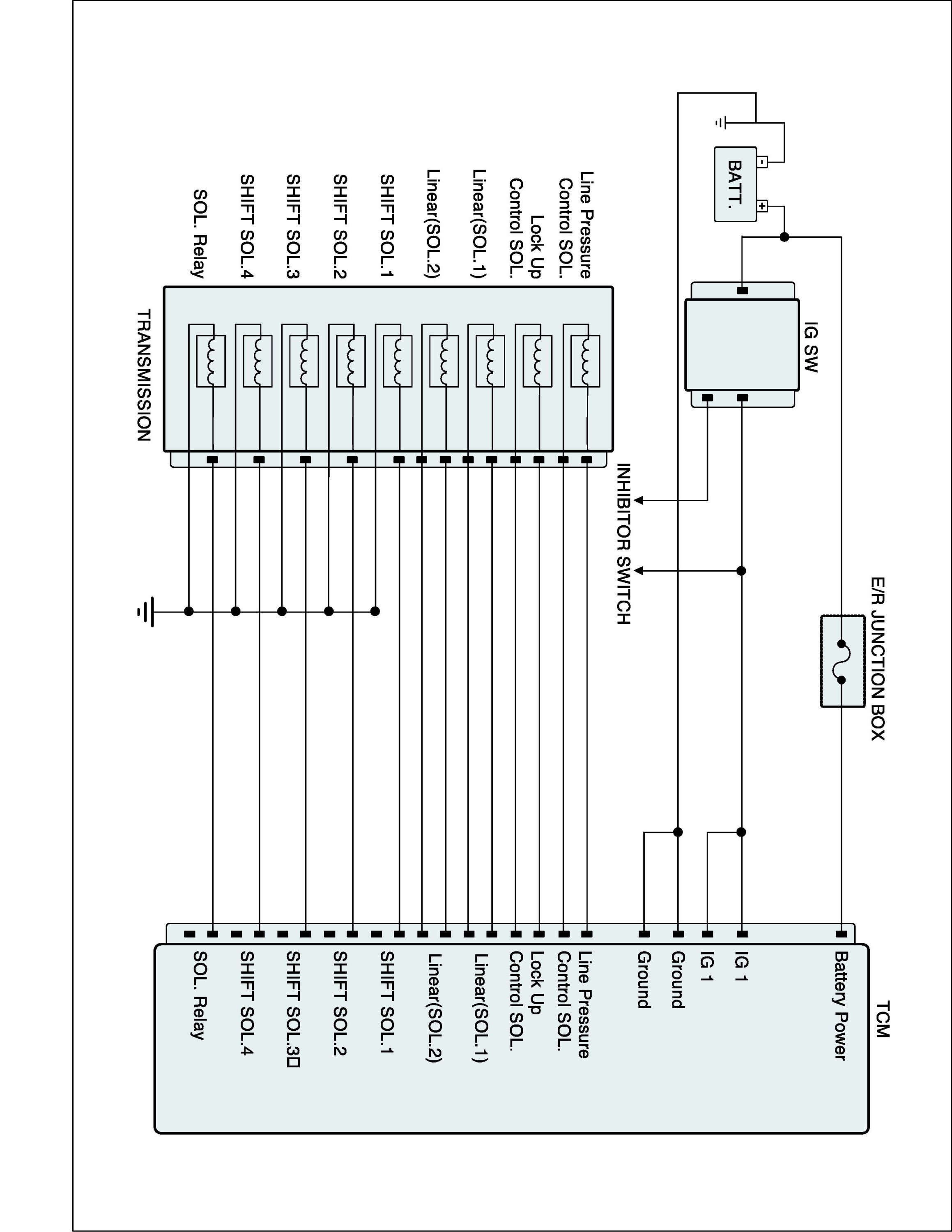

Diagnostic Circuit Diagram





Signal Waveform & Data




































Fig 1) D Range-1st gear
Fig 2) D Range-2nd gear
Fig 3) Sports mode -1st gear
Fig 4) Sports mode -2nd gear
Fig 5) Sports mode -3rd gear
Fig 6) Sports mode -4th gear

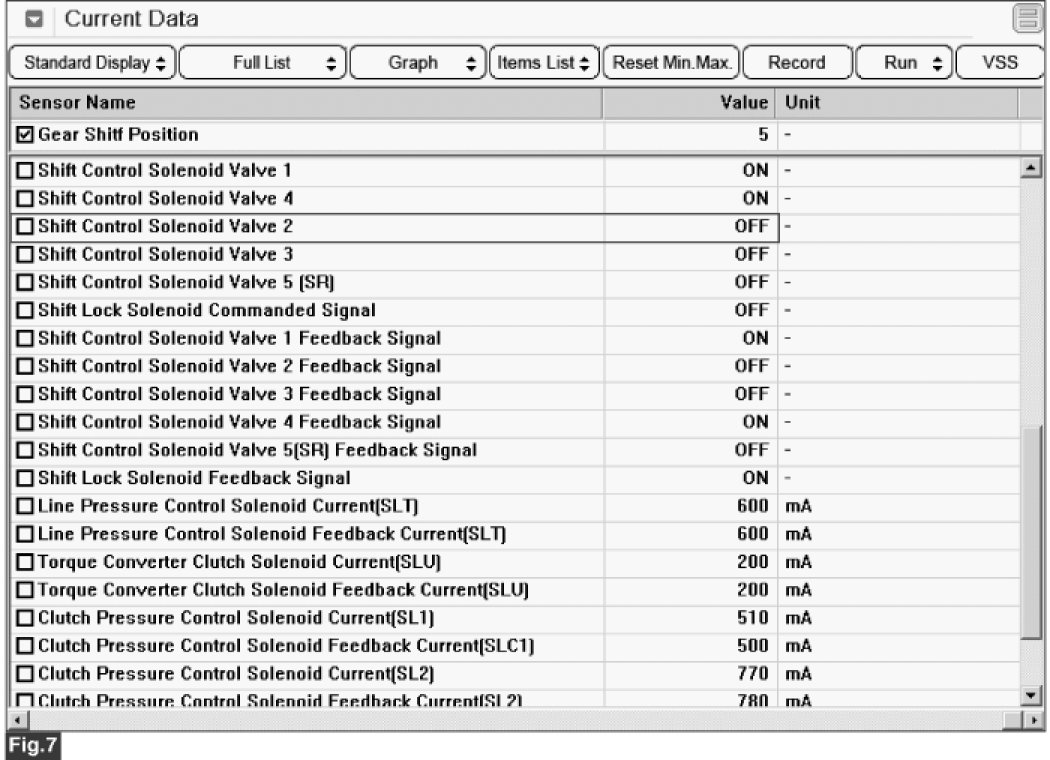

Fig 7) Sports mode -5th gear

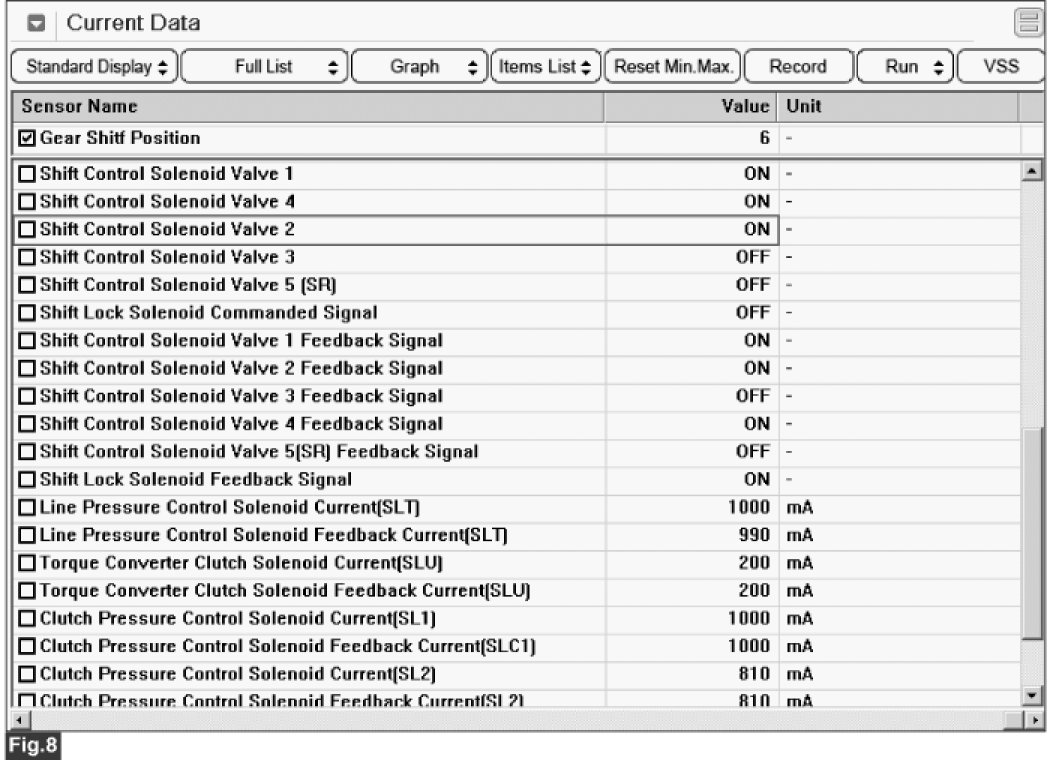

Fig 8) Sports mode -6th gear

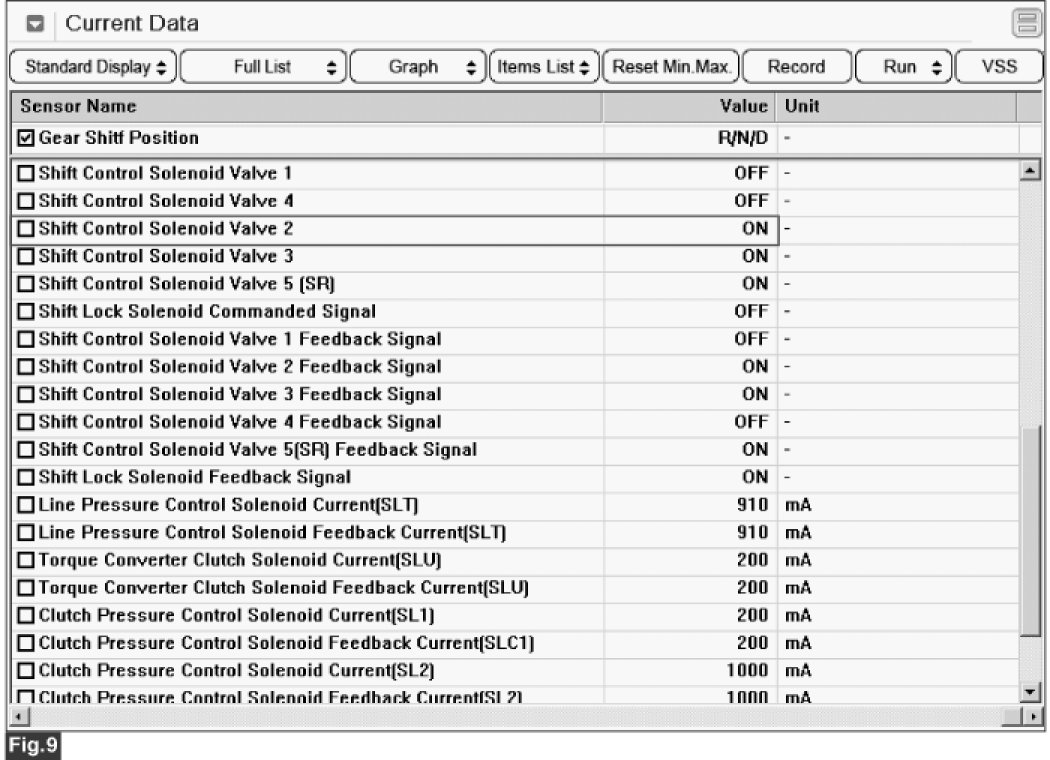

Fig 9) Reverse
