General Information

Component Location





General Description

SL1, SL2 controls linear pressure by control signal from TCU and controls C3 clutch directly and B2 brake directly under 5th to 6th.

DTC Description

TCM set this code If feedback current higher than 1358mA.

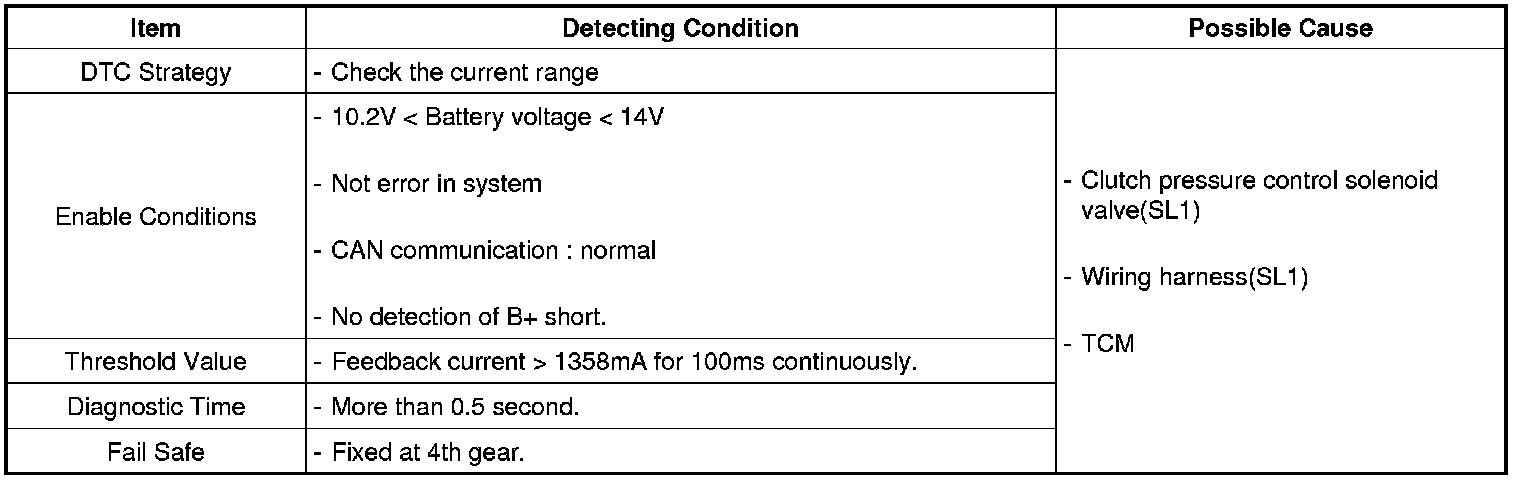

DTC Detecting Condition





Specification





Diagnostic Circuit Diagram





Signal Waveform & Data




































Fig 1) D Range-1st gear

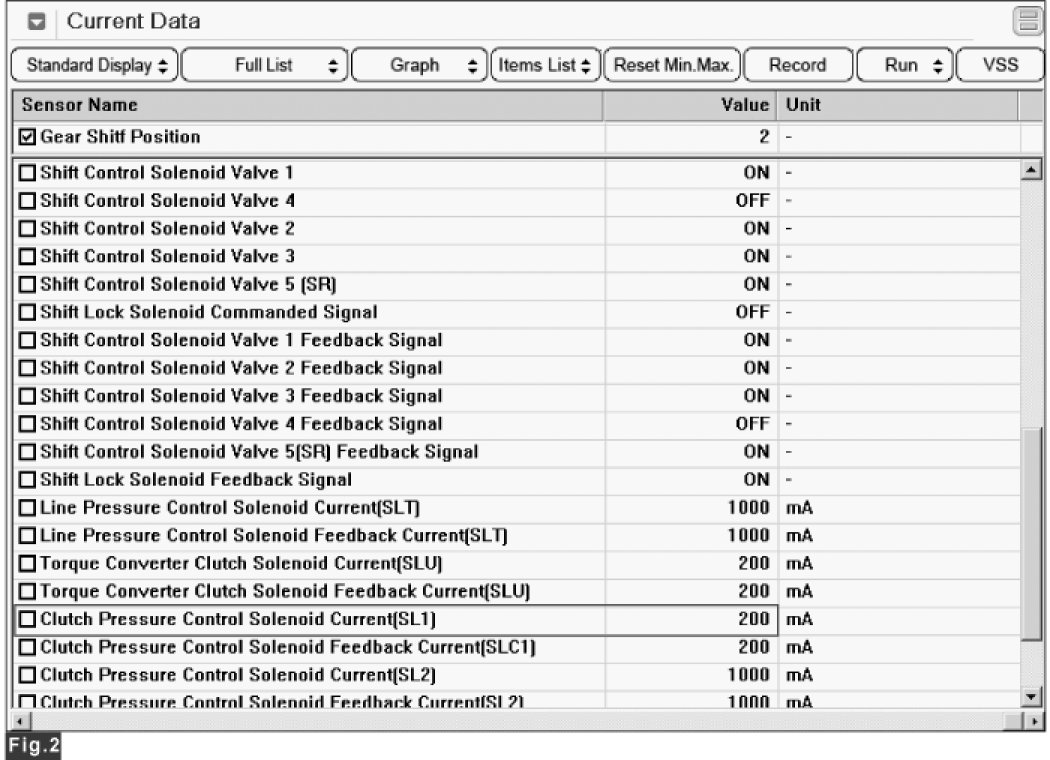

Fig 2) D Range-2nd gear
Fig 3) Sports mode -1st gear
Fig 4) Sports mode -2nd gear

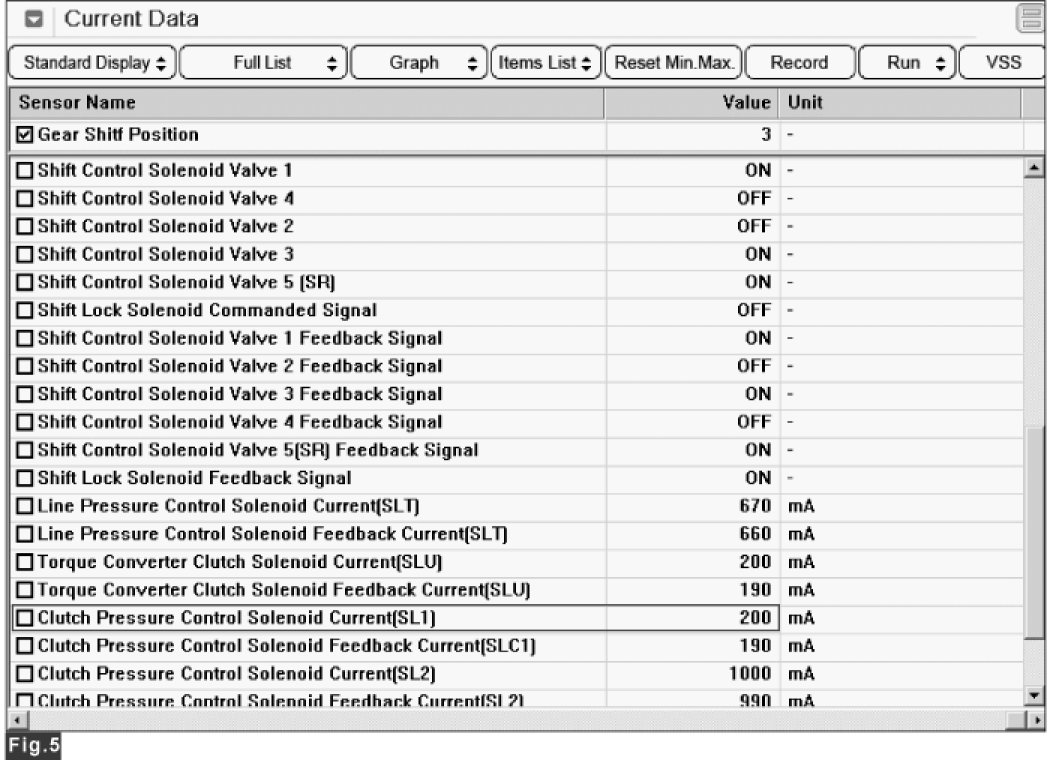

Fig 5) Sports mode -3rd gear
Fig 6) Sports mode -4th gear

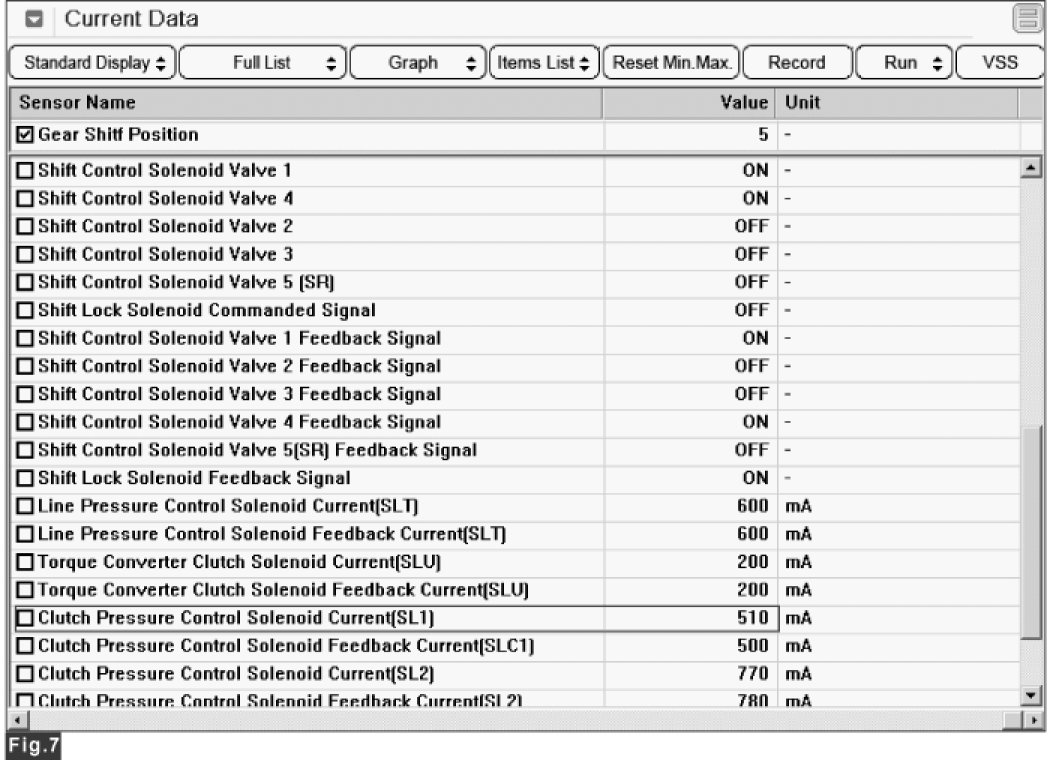

Fig 7) Sports mode -5th gear
Fig 8) Sports mode -6th gear

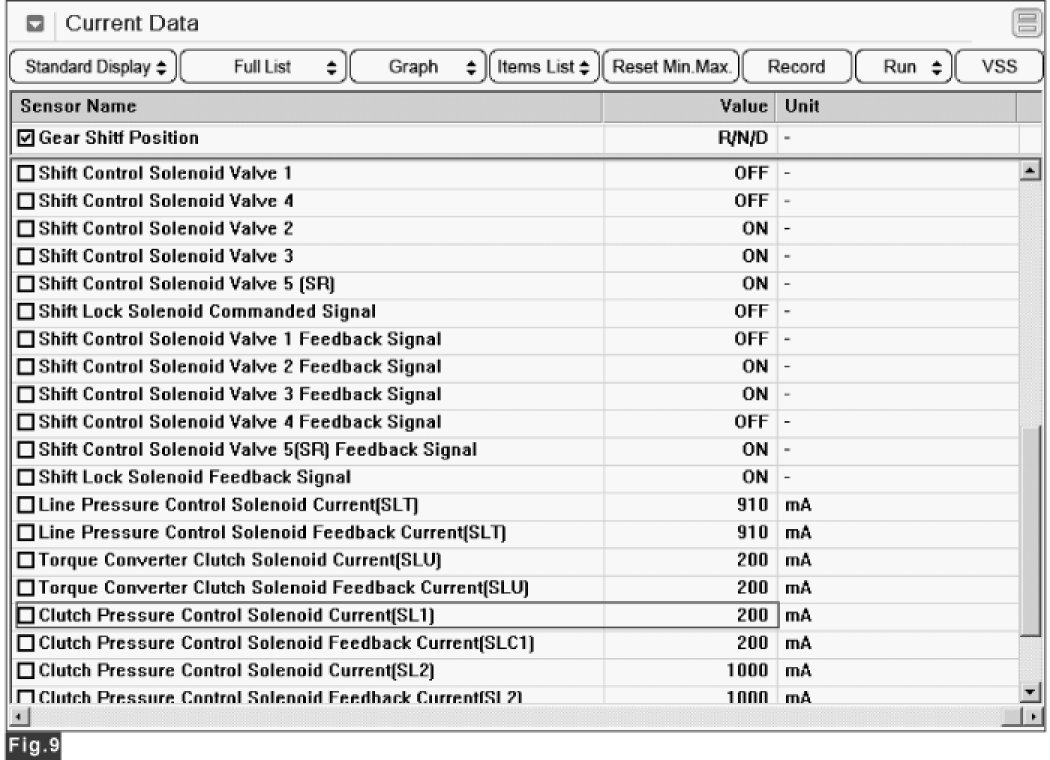

Fig 9) Reverse
