Scantool Diagnostics

Monitor Scantool Data

1. Connect scan tool to data link connector (DLC)
2. Ignition "ON". & Engine "OFF"
3. Monitor the "Battery Voltage" parameter on the scan tool

Specification : Approx, 9 - 14V

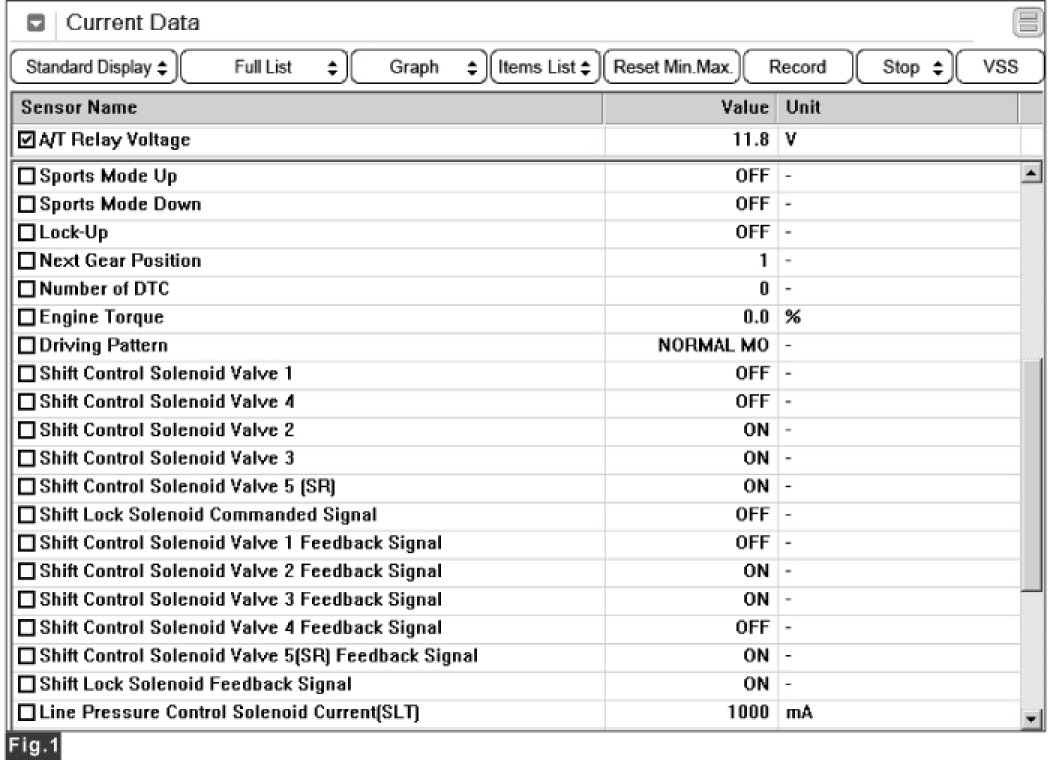

Fig 1) IG ON
Fig 2) When starting
4. Does "BATTERY VOLTAGE" follow the referance data ?
