General Information

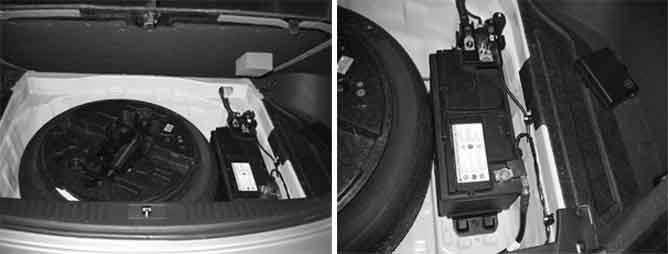

Component Location





General Description

TCM check the Battery voltage in order to normal operation of each solenoid valves and sensors.Normal Battery voltage is essential for control in A/T system.

DTC Description

TCM set this code If Battery voltage lower than 9volt.

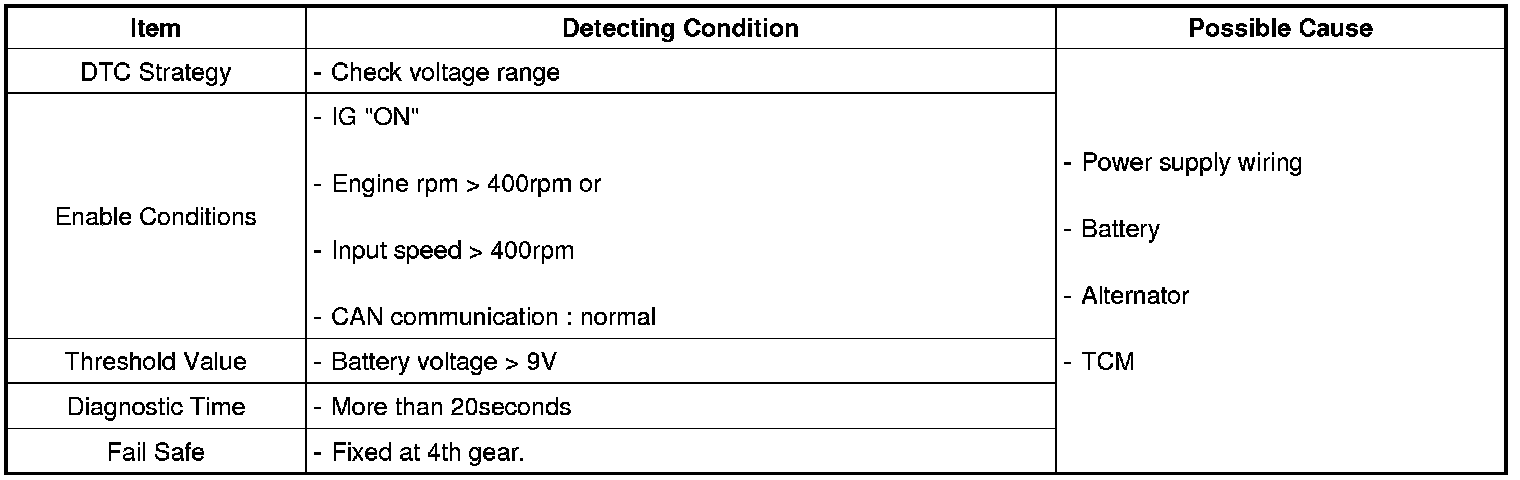

DTC Detecting Condition





Diagnostic Circuit Diagram
