Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool with data link connector (DLC)
2. Engine "ON".
3. Monitor the "OUTPUT SPEED SENSOR" parameter on the scantool
4. Driving at speed of over 19 Mile/h (30 km/h)

Specification : Increasing gradually













Fig 1) Input Speed Sensor - Driving Condition
Fig 2) Input/Output Sensor - Low speed driving condition
Fig 3) Input/Output Sensor - High speed driving condition

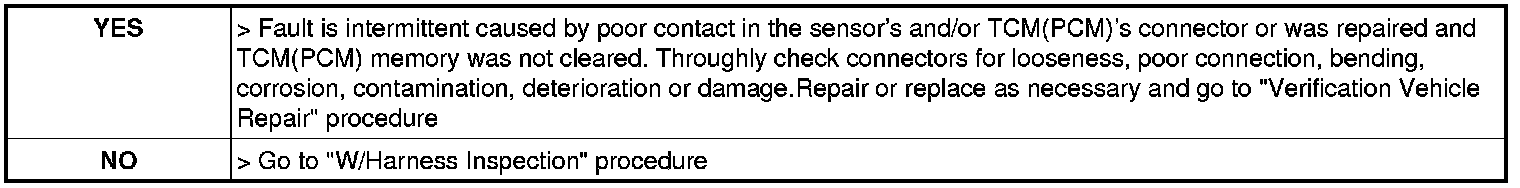

5. Does "output speed sensor" follow the referance data ?
