Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Diagnostic Connector.
2. Engine "ON".
3. Monitor "Oil temperature sensor" on the scantool.












Fig 1) Normal
Fig 2) Open or Short to battery
Fig 3) Short to ground

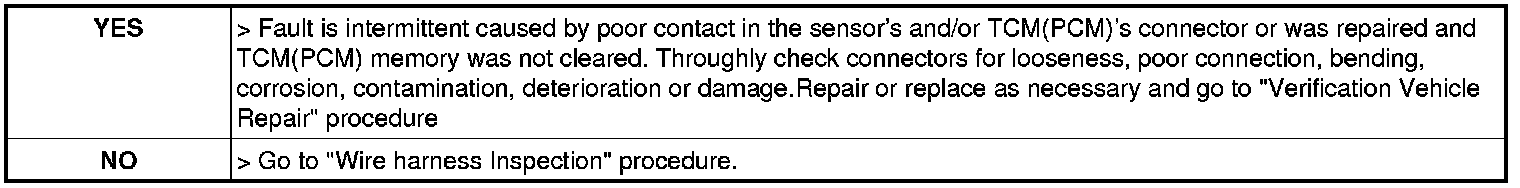

4. Does "OIL TEMPERATURE SENSOR" follow the referance data ?
