Scantool Diagnostics

Monitor Scantool Data

1. Connect scantool to Diagnostic Connector.
2. Engine "ON".
3. Monitor "ATF temperature sensor" on the scantool.

Specification : Increasing gradually













Fig 1) Normal
Fig 2) Open or Short to battery
Fig 3) Short to ground

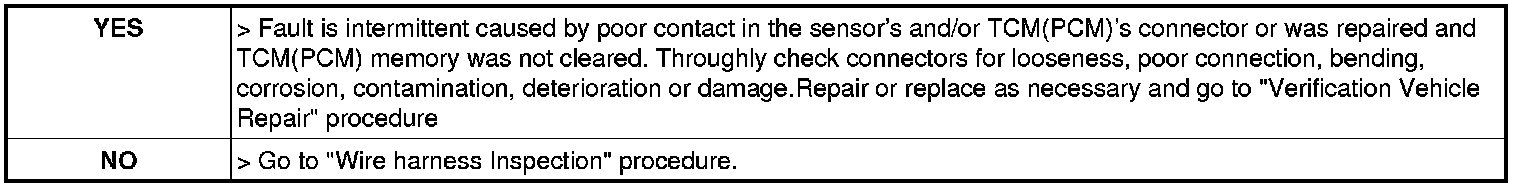

4. Does "OIL TEMPERATURE SENSOR" follow the referance data ?
